HARNESSESHarness - main · page 3 of 13
HARNESSES
REPAIRS 86-7-17

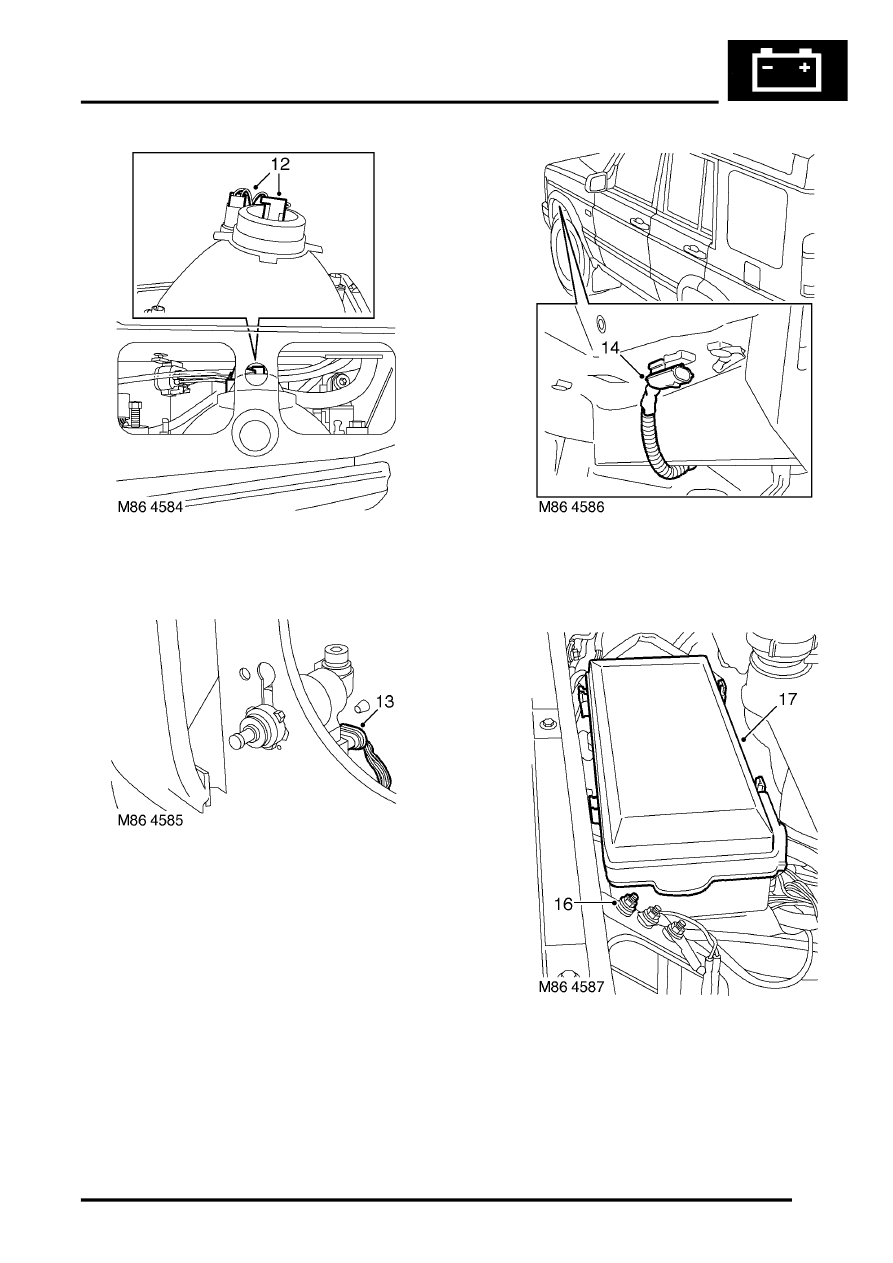

12. Disconnect multiplugs from headlamp and
sidelamp.
13. Disconnect multiplug from headlamp levelling
motor.
14. Release clip securing fog lamp multiplug.
15. Withdraw harness to engine compartment fuse
box.
16. Remove nut securing harness earth to body.
17. Release 4 clips and remove engine
compartment fusebox cover.
