Fuel system hoses

All fuel hoses are made up of two laminations, an
armoured rubber outer sleeve and an inner viton
core. If any of the fuel system hoses have been
disconnected, it is imperative that the internal bore is
inspected to ensure that the viton lining has not
become separated from the armoured outer sleeve.
A new hose must be fitted if separation is evident.

Cooling system hoses
The following precautions MUST be followed to
ensure that integrity of cooling hoses and their
connections to system components are
maintained.

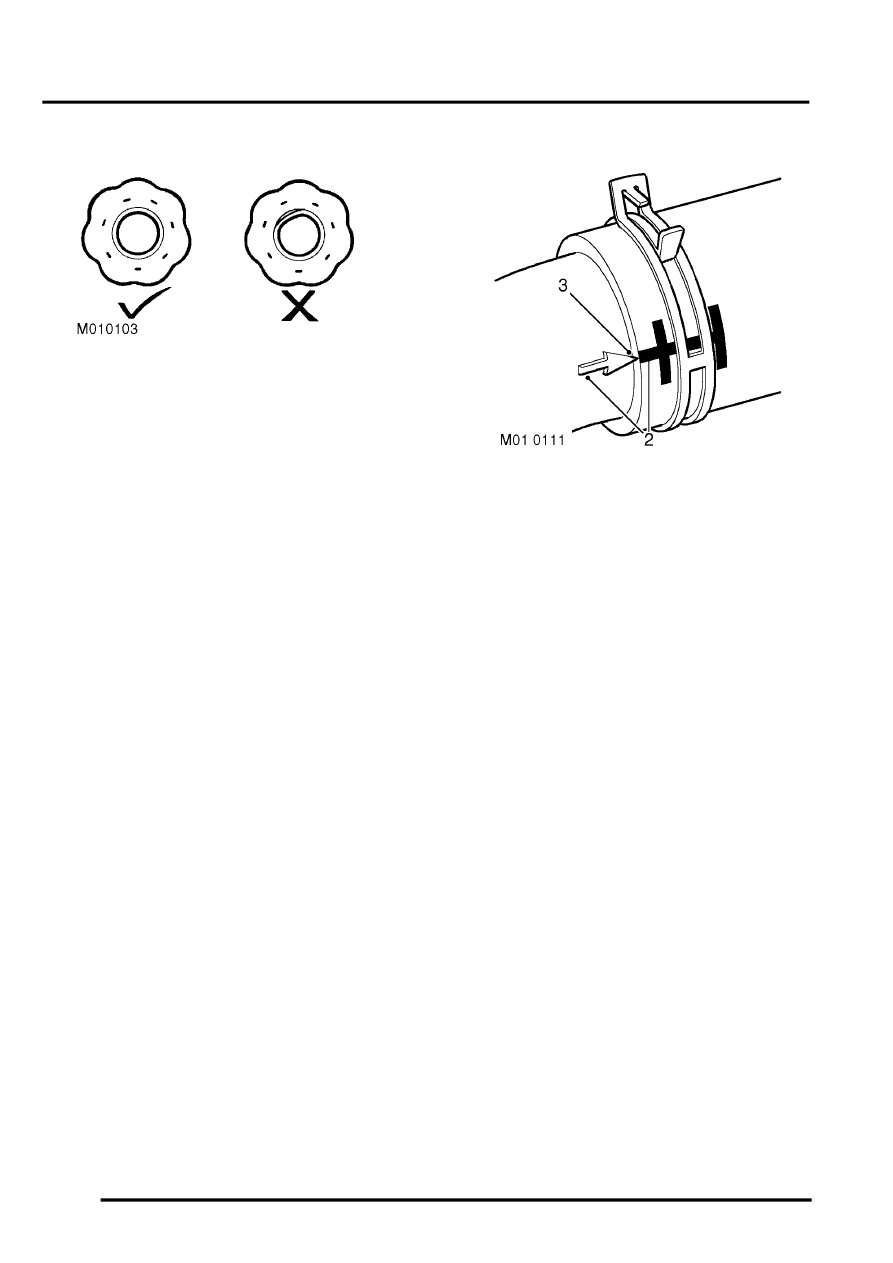

Hose orientation and connection

Correct orientation of cooling hoses is important in
ensuring that the hose does not become fatigued or
damaged through contact with adjacent
components. Where 'timing' marks (2) are provided
on the hose and corresponding connection, these
must be used to ensure correct orientation. Hoses
must be pushed fully onto their connection points.
Usually, a moulded form (3) on the stub pipe
provides a positive indicator.
