FRONT SUSPENSION

REPAIRS

60-45

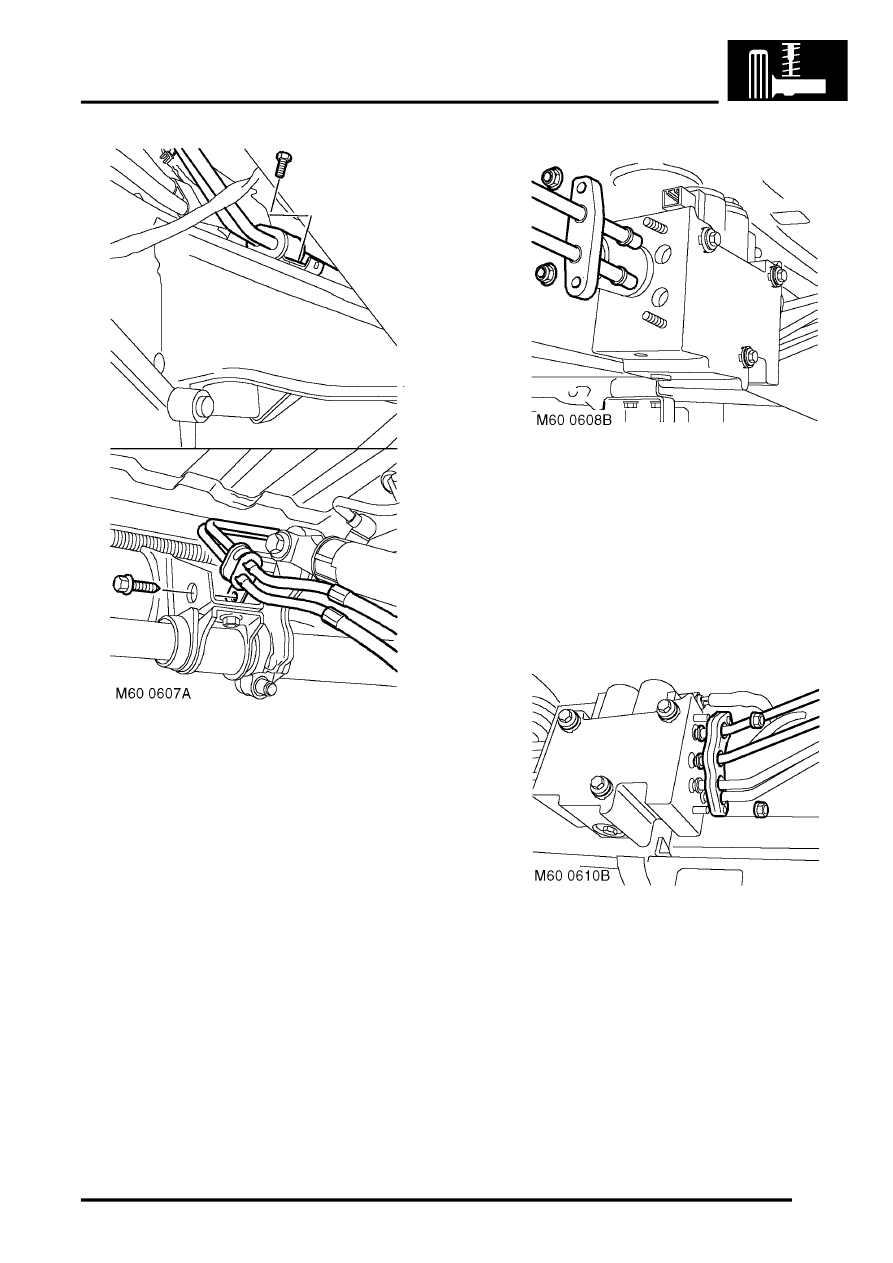

4. Remove 2 bolts securing 2 rear pipe  clips to

chassis.

5. Remove 2 nuts securing rear pipe clamping

plate. Release clamping plate and pipes from
valve block.

CAUTION: Always fit plugs to open
connections to prevent contamination.

NOTE: Keep pipes assembled to clamping
plate to maintain correct pipe positions for
refitting.

6. Remove 2 nuts securing front pipe clamping

plate.
