Cruise control block diagram (ENGINE MANAGEMENT SYSTEM - V8)
- Make
- Land Rover
- Model
- Discovery II
- Section
- DESCRIPTION AND OPERATION › Cruise control block diagram
ENGINE MANAGEMENT SYSTEM - V8Cruise control block diagram
ENGINE MANAGEMENT SYSTEM - V8
18-2-62 DESCRIPTION AND OPERATION

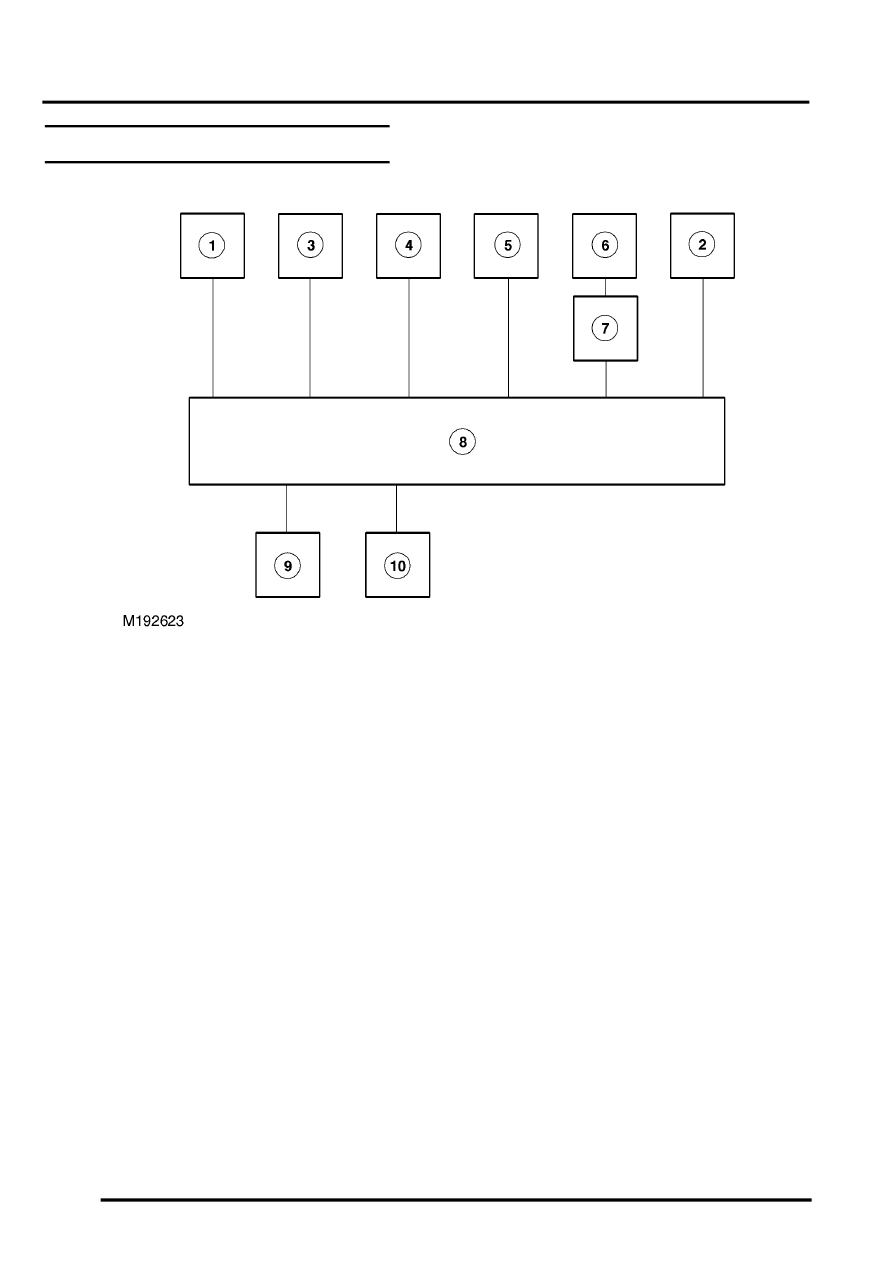

Cruise control block diagram
1 SLABS ECU
2 BCU
3 Cruise control master switch
4 SET+ switch
5 RES switch
6 Brake pedal switch
7 Clutch pedal switch
8 Cruise control ECU
9 Vacuum pump assembly incorporating
pneumatic actuator
10 Automatic gear selector lever
