DRIVING AIDS (Description): DESCRIPTION AND OPERATION (page 3 of 7)

DRIVING AIDS

86-8-6

DESCRIPTION AND OPERATION

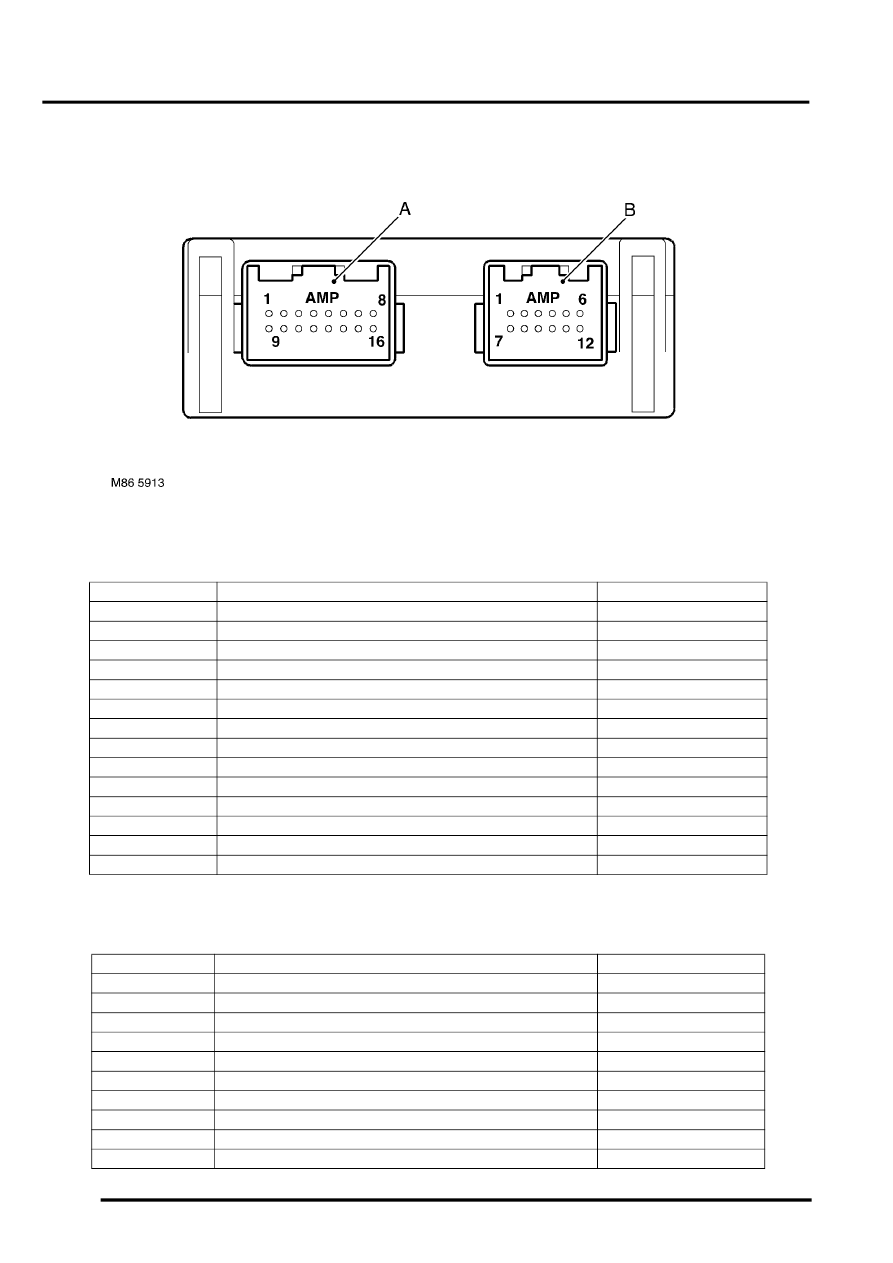

PDC ECU Connector Pin Details

a Connector C0958

b Connector C0957

Connector C0958

Connector C0957

Pin No.

Description

Input/Output

1

Ignition switch power supply

Input

2

Sounder - Negative

Input

3

Not used

–

4

PDC  Switch

Input

5

Not used

–

6

Reverse Gear signal

Input

7

Not used

–

8

Ground

–

9

Not used

–

10

Sounder - Positive 12V supply

Output

11

Not used

–

12

Not used

–

13

PDC Switch LED

Output

14 to 16

Not used

–

Pin No.

Description

Input/Output

1

Not used

–

2

Sensor - RH Inner - Signal

Input

3

Sensor - Rear LH Inner - Signal

Input

4

Sensor - Rear RH Outer - Signal

Input

5

Sensor - Rear LH Outer - Signal

Input

6 and 7

Not used

–

8

Ground - All sensors

Input

9

Not used

–

10

Power Supply - All sensors

Output

11 and 12

Not used

–
