Battery carrier

CHARGING AND STARTING

REPAIRS

86-1-5

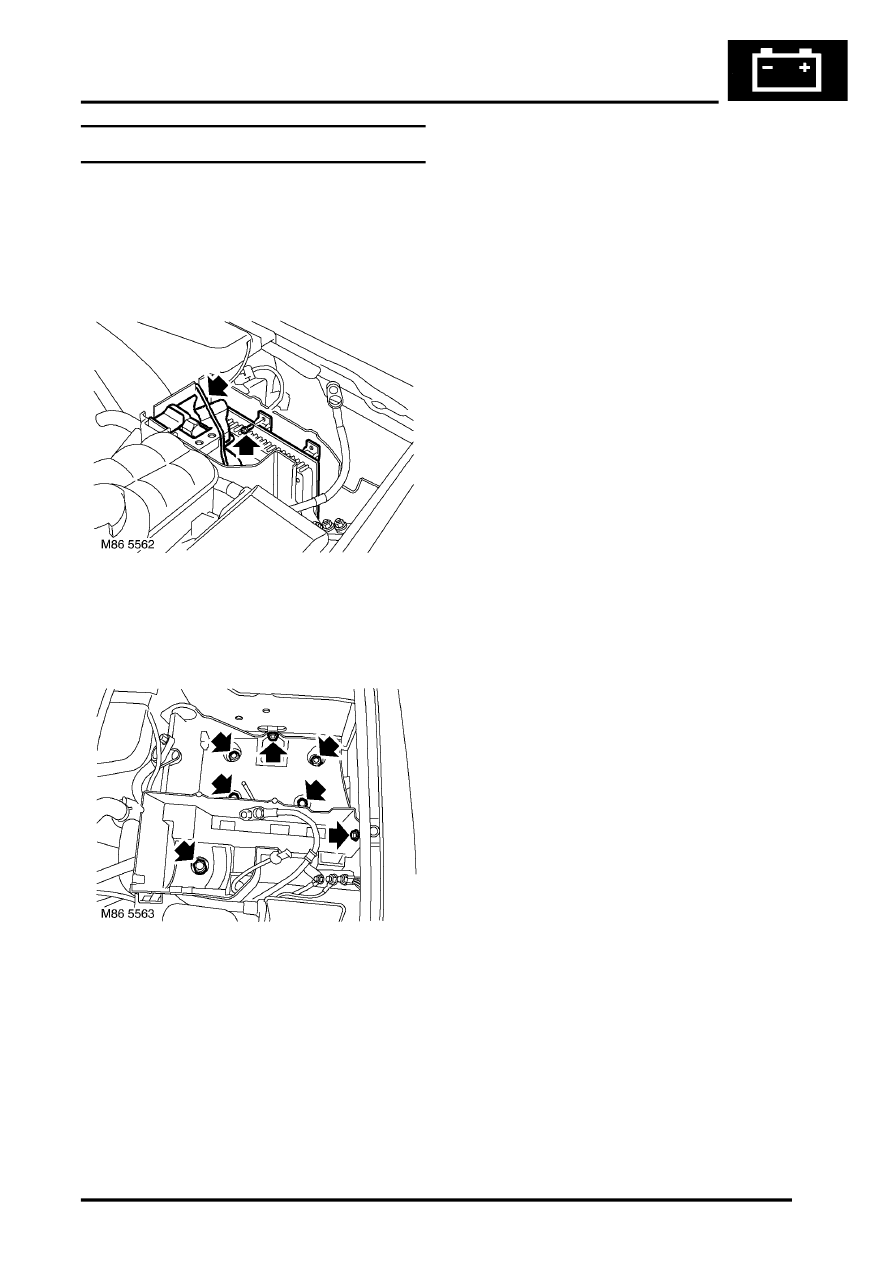

Battery carrier

$% 86.15.11

Remove

1. Remove battery.

 +

 CHARGING AND STARTING,

REPAIRS, Battery.

2. Release strap and remove jack.
3. Release coolant hose from clip.
4. Diesel models: Remove screw securing ECM,

release ECM and position aside.

5. Remove 7 bolts securing battery carrier.
6. Remove battery carrier.

NOTE: Do not carry out further dismantling if
component is removed for access only.

7. Remove jack retaining strap, speed nut and

clip.

Refit

1. Fit jack retaining strap, speed nut and clip.
2. Fit battery carrier, fit bolts and tighten to 28 Nm

(21 lbf.ft).

3. Diesel models: Fit ECM and secure with

screw.

4. Secure coolant hose.
5. Fit and secure jack.
6. Fit battery.

 +

 CHARGING AND STARTING,

REPAIRS, Battery.
