BODY CONTROL UNIT (Description): DESCRIPTION AND OPERATION (page 7 of 18)

BODY CONTROL UNIT

DESCRIPTION AND OPERATION

86-3-7

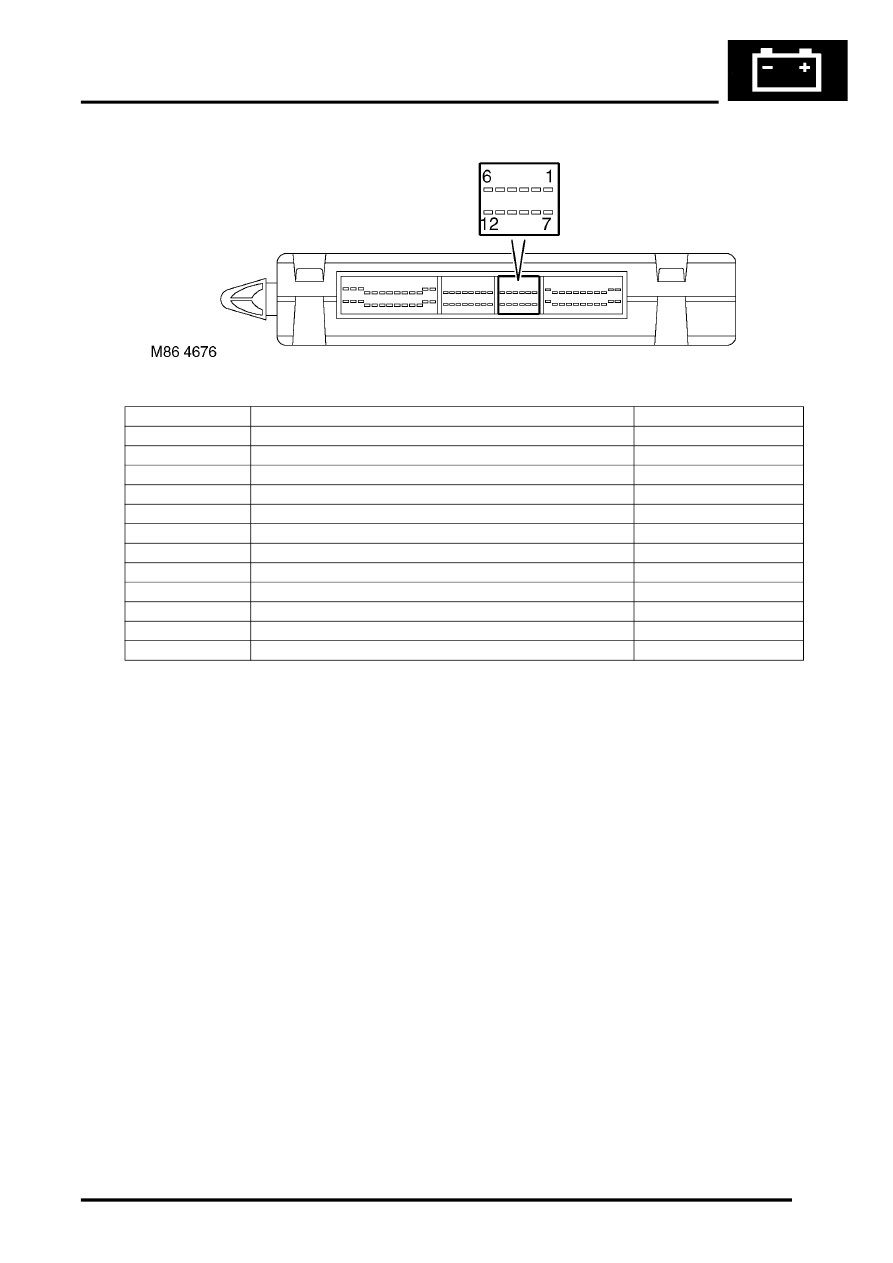

C0663 connector pin details

Pin No.

Description

Input/Output

1

Crank selected

Input

2

LH direction indicator selected

Input

3

Driver/Passenger seat enable

Output

4

Front fog lamps

Output

5

Heated rear screen selected

Input

6

Ultrasonic input

Input

7

Gear position switch (Z contacts)

Input

8

Ultrasonic power supply

Output

9

Courtesy lamps

Output

10

Feed to gear position switch (W, X, Y, Z contacts)

Output

11

Park/Neutral selected

Input

12

Hazard warning lamps

Input
