Receiver - alarm system - models without sunroof

ALARM SYSTEM AND HORN

86-4-28 REPAIR

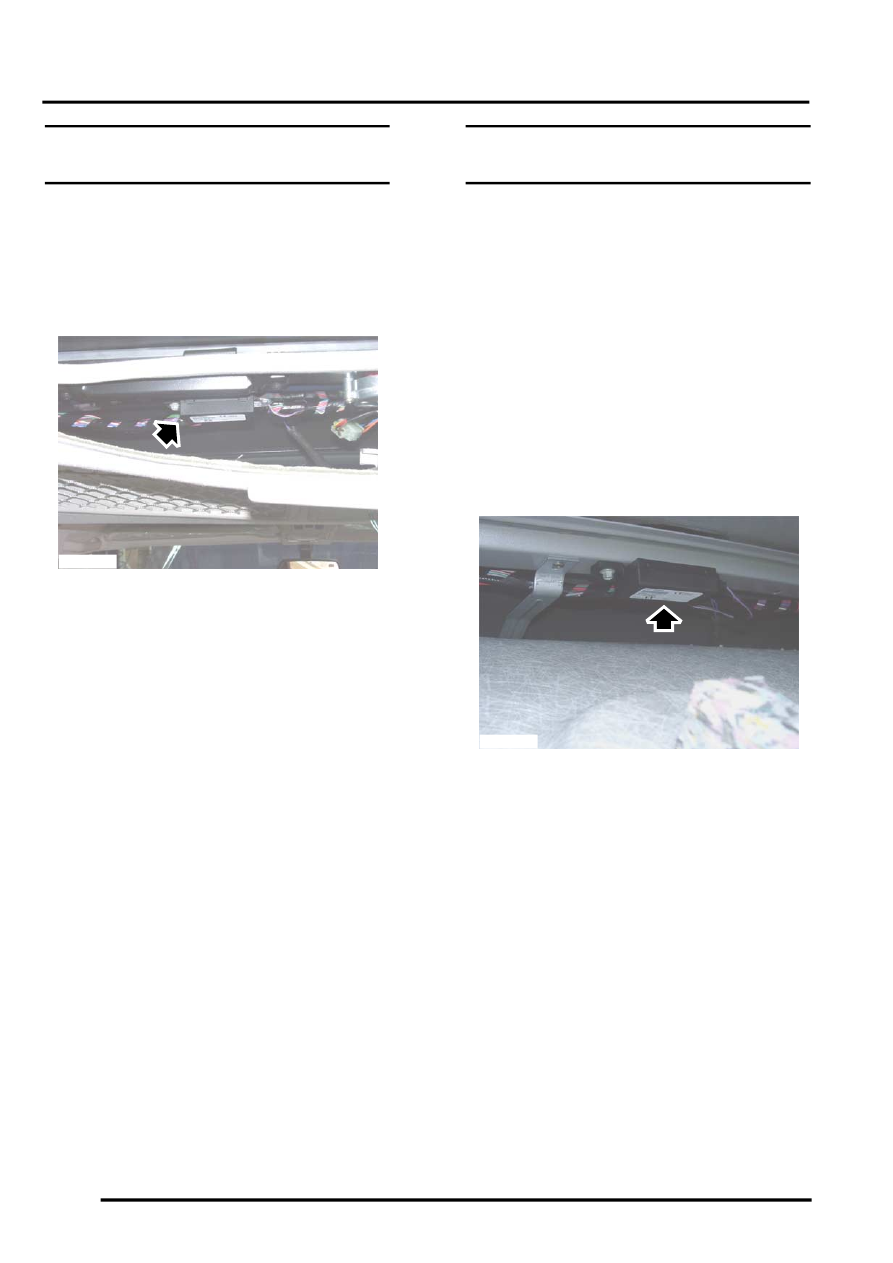

Receiver - alarm system - models with
sunroof

$% 86.77.31

Remove

1. Remove trim seal from rear sunroof.
2. Release sunroof switch and remove screw

securing headlining.

3. Remove 2 nuts securing receiver to roof panel,

disconnect multiplug and remove receiver.

Refit

1. Connect multiplug to receiver, fit to roof panel,

tighten nuts to 10 Nm (7 lbf.ft).

2. Fit and tighten screw securing headlining.
3. Fit sunroof switch
4. Fit sunroof trim seal.
5. Connect multiplug to receiver, fit to roof panel

and secure with nuts tighten to 10 Nm (7 lbf.ft).

Receiver - alarm system - models
without sunroof

$% 86.77.31

Remove

1. Remove rear headrest. Repeat operation on

opposite side.


 +

 SEATS, REPAIRS, Head restraint -

third row seat.

2. Remove 'D' post trim casing. Repeat operation

on opposite side.


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - 'D' post.

3. Remove rear interior light.



 +

 LIGHTING, REPAIRS, Lamp - interior

- rear.

4. Release 2 studs securing rear headlining,

carefully lower lining.

5. Remove 2 studs securing alarm receiver.
6. Disconnect multiplug from alarm receiver and

remove receiver.

Refit

1. Connect multiplug to receiver.
2. Position receiver and secure with studs.
3. Position rear end of headlining, secure with

studs.

4. Fit rear interior light.



 +

 LIGHTING, REPAIRS, Lamp - interior

- rear.

5. Fit both 'D' post trim casings. Repeat operation

on opposite side.


 +

 INTERIOR TRIM COMPONENTS,

REPAIRS, Trim casing - 'D' post.

6.  Fit rear headrests. Repeat operation on

opposite side.


 +

 SEATS, REPAIRS, Head restraint -

third row seat.

M86 5632

M86 5761
