CONTROLS LIGHTING - COMPONENT LOCATION

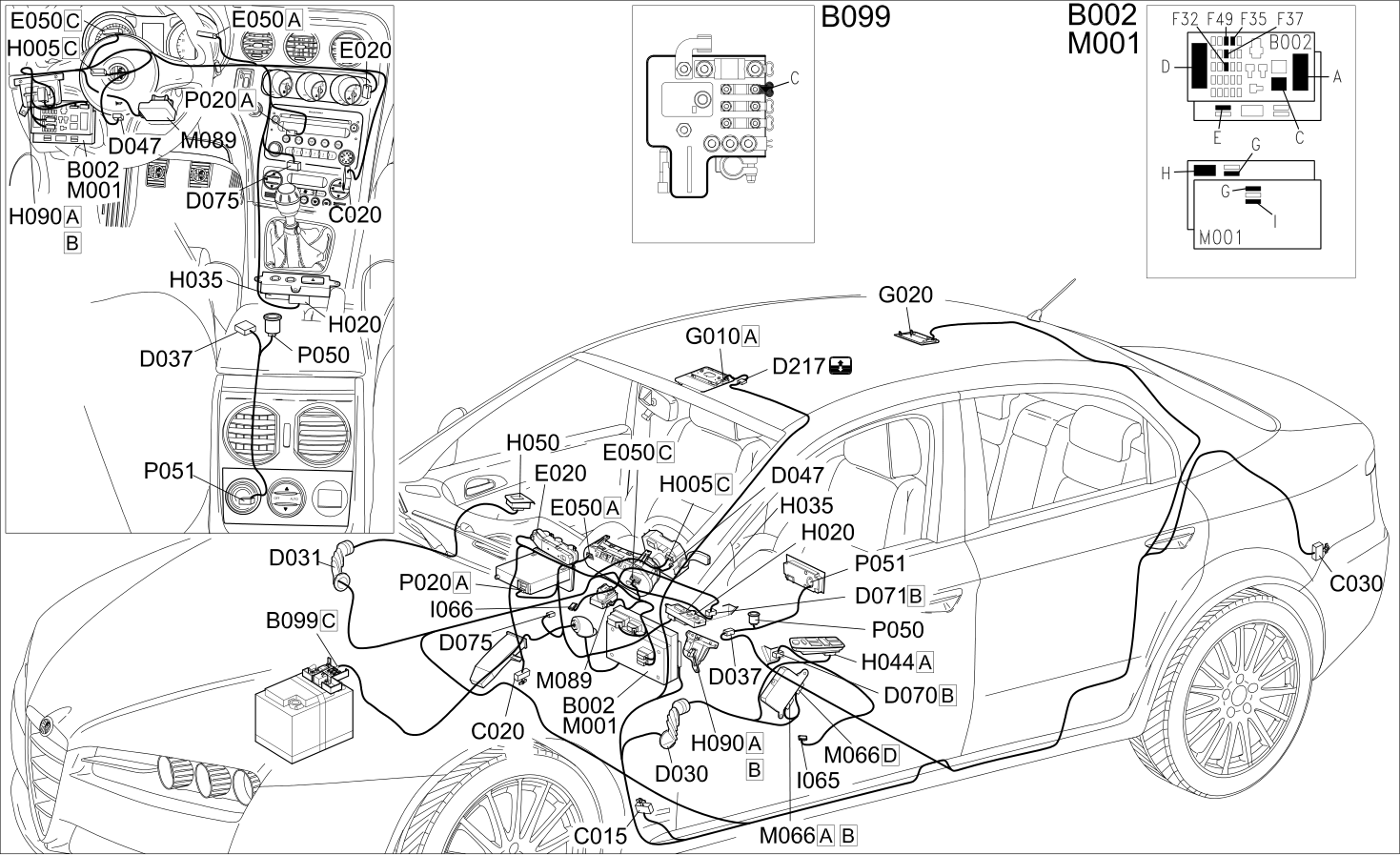

Low setup

COMPONENT LOCATION

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D070	DRIVER'S SEAT COUPLING	Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
D071	PASSENGER SEAT COUPLING	Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
D075	RADIO PHONE COUPLING
D217	REAR/COURTESY LIGHT WIRING COUPLING
E020	ANCILLARY INSTRUMENT	Op. 5560C51 COMBINED ANALOGUE CONTROL PANEL - R+R OR REPLACE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
G020	REAR (CENTRE) COURTESY LIGHT	Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H020	HAZARD WARNING LIGHTS SWITCH	Op. 7040L37 GEAR LEVER TRIM - R.R
H035	TUNNEL SWITCHES	Op. 7040L37 GEAR LEVER TRIM - R.R
H044	ELECTRIC WINDOW CONTROLS ON FRONT DRIVER'S DOOR	Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE- R.R.
H050	ELECTRIC WINDOW SWITCH ON FRONT PASSENGER'S DOOR	Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE- R.R.
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I065	DRIVER'S SEAT HEATING SWITCH
I066	PASSENGER SEAT HEATING SWITCH
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P050	CIGAR LIGHTER/CURRENT SOCKET	Op. 7065C72 FRONT CIGAR LIGHTER SOCKET - R.R.
P051	ADDITIONAL CURRENT SOCKET	Op. 7065C76 REAR CIGAR LIGHTER HOUSING - R.R.

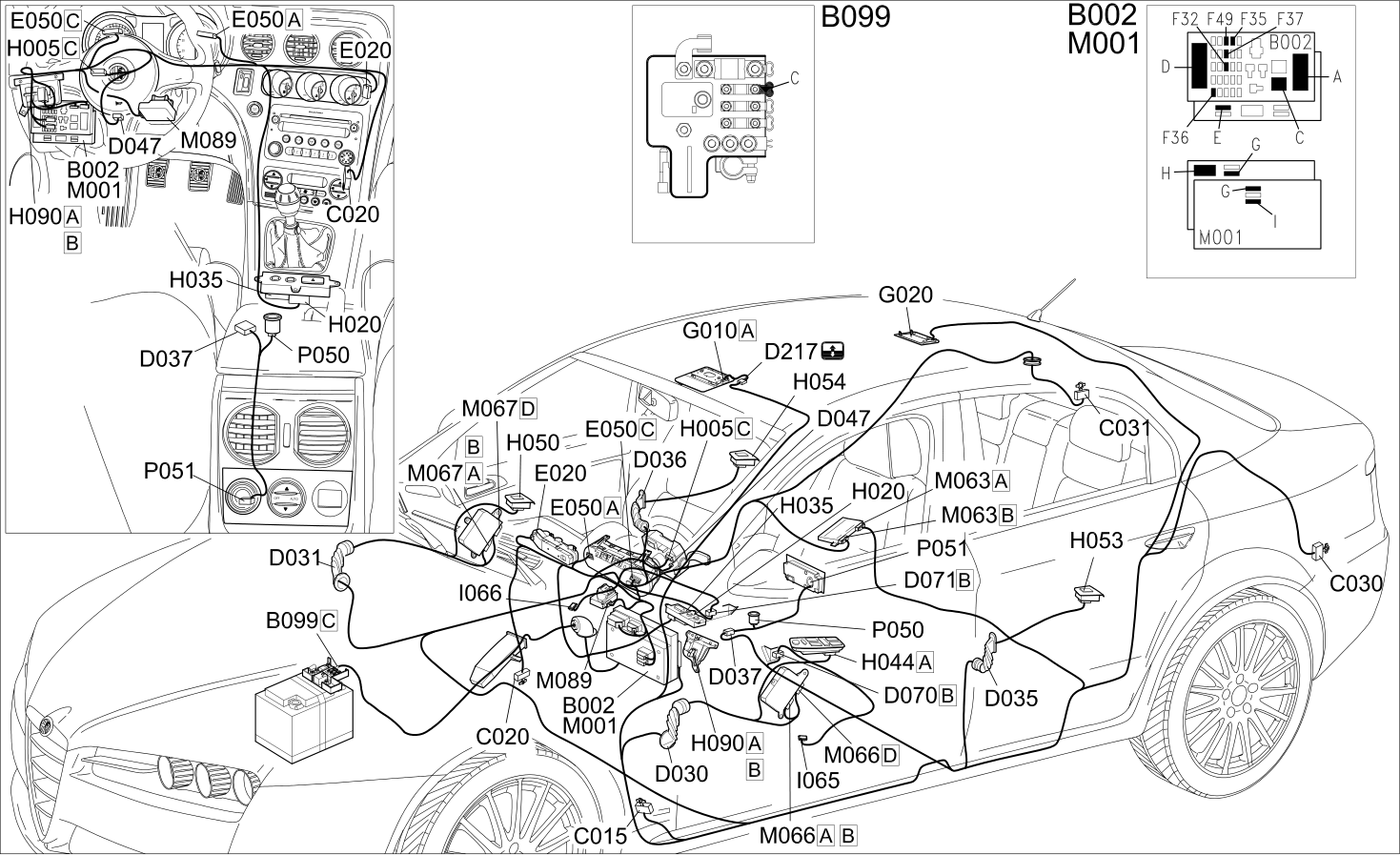

High setup

COMPONENT LOCATION

B002	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
B099	MAXIFUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
C030	LEFT REAR EARTH
C031	RIGHT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D037	REAR COUPLING/ CENTRE CONSOLE
D070	DRIVER'S SEAT COUPLING	Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
D071	PASSENGER SEAT COUPLING	Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.
D217	REAR/COURTESY LIGHT WIRING COUPLING
E020	ANCILLARY INSTRUMENT	Op. 5560C51 COMBINED ANALOGUE CONTROL PANEL - R+R OR REPLACE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R
G020	REAR (CENTRE) COURTESY LIGHT	Op. 7040E46 REAR COURTESY LIGHT ASSEMBLY - R R
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H020	HAZARD WARNING LIGHTS SWITCH	Op. 7040L37 GEAR LEVER TRIM - R.R
H035	TUNNEL SWITCHES	Op. 7040L37 GEAR LEVER TRIM - R.R
H044	ELECTRIC WINDOW CONTROLS ON FRONT DRIVER'S DOOR	Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE- R.R.
H050	ELECTRIC WINDOW SWITCH ON FRONT PASSENGER'S DOOR	Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE- R.R.
H053	ELECTRIC WINDOW SWITCH ON LEFT REAR DOOR	Op. 7010M10 REAR SIDE DOOR ELECTRICALLY OPERATED WINDOW SWITCH (ONE), LEFT OR RIGHT - R.R
H054	ELECTRIC WINDOW SWITCH ON RIGHT REAR DOOR	Op. 7010M10 REAR SIDE DOOR ELECTRICALLY OPERATED WINDOW SWITCH (ONE), LEFT OR RIGHT - R.R
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
I065	DRIVER'S SEAT HEATING SWITCH
I066	PASSENGER SEAT HEATING SWITCH
M001	BODY COMPUTER	Op. 5505A35 MAIN BODY COMPUTER/JUNCTION UNIT - R.R.
M063	LUGGAGE COMPARTMENT CONTROL UNIT (NVB)	Op. 5505A48 CONTROL UNIT (DIGITAL NETWORK NODE) IN BOOT COMPARTMENT - R.R.
M066	DRIVER'S DOOR CONTROL UNIT (NPG)	Op. 5505A43 CONTROL UNIT (DIGITAL NETWORK NODE) IN DRIVER'S DOOR - R.R. WITH PANEL REMOVED
M067	PASSENGER DOOR CONTROL UNIT (NPP)	Op. 5505A47 PASSENGER SIDE DOOR CONTROL UNIT DIGITAL NETWORK MODE R R WITH PANEL REMOVED
M089	STEERING LOCK CONTROL UNIT (NBS)	Op. 5580E17 STEERING LOCK - R.R
P050	CIGAR LIGHTER/CURRENT SOCKET	Op. 7065C72 FRONT CIGAR LIGHTER SOCKET - R.R.
P051	ADDITIONAL CURRENT SOCKET	Op. 7065C76 REAR CIGAR LIGHTER HOUSING - R.R.
