I065 driver's seat heating switch

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Switches › I065 driver's seat heating switch

Connectors and pin-outsI065 driver's seat heating switch

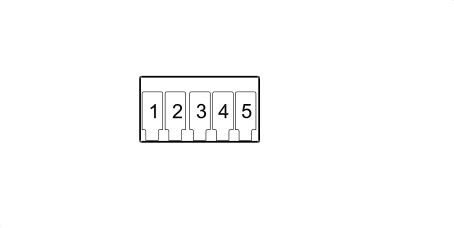

I065 DRIVER'S SEAT HEATING SWITCH

Wiring	Colour
See 36 LEFT SEAT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	R		See D070B DRIVER'S SEAT COUPLING (REAR)	2
2	1	S	X	See M170 DRIVER'S FRONT SEAT HEATER CONTROL UNIT	5
				See D070B DRIVER'S SEAT COUPLING (REAR)	1
3		M	X	See O040B LEFT SEAT HEATER (LEFT SEAT)	3
				See M170 DRIVER'S FRONT SEAT HEATER CONTROL UNIT	6
5		C	X	See D070B DRIVER'S SEAT COUPLING (REAR)	12
				See M170 DRIVER'S FRONT SEAT HEATER CONTROL UNIT	4
				See O040A LEFT SEAT HEATER (LEFT SEAT)	3
				See O040B LEFT SEAT HEATER (LEFT SEAT)	4
