D037 rear coupling/ centre console

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Intermediate couplings › D037 rear coupling/ centre console

Connectors and pin-outsD037 rear coupling/ centre console

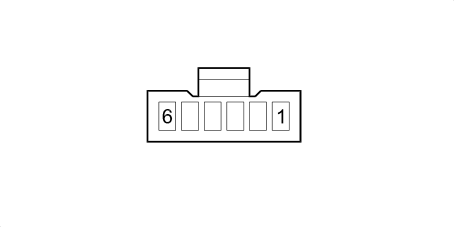

D037 REAR COUPLING/ CENTRE CONSOLE

Wiring	Colour
See 78 CENTRE CONSOLE BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	G		See P050 CIGAR LIGHTER/CURRENT SOCKET	1
2		GL		See P050 CIGAR LIGHTER/CURRENT SOCKET	2
3	1.5	N		See P050 CIGAR LIGHTER/CURRENT SOCKET	3
4	1.5	GR		See P051 ADDITIONAL CURRENT SOCKET	1
5		GL		See P051 ADDITIONAL CURRENT SOCKET	2
6	1.5	N		See P051 ADDITIONAL CURRENT SOCKET	3

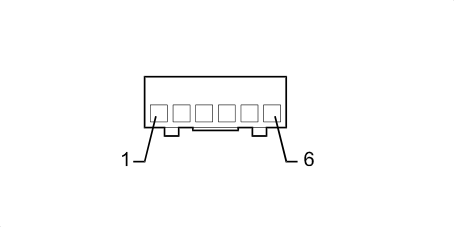

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1.5	G		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	14
2		GL	X	See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	5
				See D037 REAR COUPLING/ CENTRE CONSOLE	5
				See M001E BODY COMPUTER (REAR)	40
3	1.5	N		See C015 DASHBOARD EARTH, DRIVER'S SIDE	4
4	1.5	GR		See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	12
5		GL	X	See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	5
				See D037 REAR COUPLING/ CENTRE CONSOLE	2
				See M001E BODY COMPUTER (REAR)	40
6	1.5	N		See C015 DASHBOARD EARTH, DRIVER'S SIDE	7
