STALK UNIT ASSEMBLY - R+R

Operation 5550A10 · STALK UNIT

Removing

Op. 7040A26 STEERING COLUMN TRIM - R+R

Follow the safety instructions for this operation meticulously

Op. 5580C18 AIR BAG MODULE - R+R

- Place the steering wheel in a central position with the wheels straight.

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

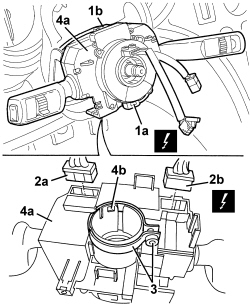

1. Disconnect the electrical connection for the clock spring (1a) and the steering sensor (1b).

2. Disconnect the electrical connections (2a, 2b, 2c).

3. Loosen the steering column switch unit retaining band.

4. Remove the steering column switch unit assembly (4a) releasing the tab (4b) from the steering column retainer.

Neither the clock spring, nor the steering angle sensor, nor the Cruise Control system control can be separated from the steering column switch unit. Avoid carrying out operations on the individual components.

Refitting

- Check that the steering column switch unit is not damaged.

- Check that the wheels are straight.

- Fit the steering column switch unit assembly in place and attach the tab to the steering column retainer.

- Tighten the steering column switch unit retaining band.

- Connect the front and rear electrical connections for the steering column switch unit.

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5580C18 AIR BAG MODULE - R+R

Op. 7040A26 STEERING COLUMN TRIM - R+R
