C015 dashboard earth, driver's side

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Earths › C015 dashboard earth, driver's side

Connectors and pin-outsC015 dashboard earth, driver's side

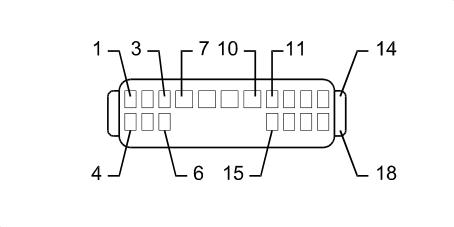

C015 DASHBOARD EARTH, DRIVER'S SIDE

Low setup

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N	X	See G031 DRIVER'S SUN VISOR LIGHT	2
				See G032 PASSENGER SIDE SUN VISOR LIGHT	2
2	1	NZ		See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	7
4	1.5	N		See D037 REAR COUPLING/ CENTRE CONSOLE	3
6		N		See D030 DRIVER'S FRONT DOOR COUPLING	3
8	2	NZ		See I050 INERTIA SWITCH	1
9	2.5	N		See D031 PASSENGER FRONT DOOR COUPLING	31
10	2.5	N		See D030 DRIVER'S FRONT DOOR COUPLING	31
11		NZ		See G010C FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	2
13		N		See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
16	1	NZ		See D070B DRIVER'S SEAT COUPLING (REAR)	10
17	1	NB		See D071B PASSENGER SEAT COUPLING (REAR)	12

High setup, Powered sunroof

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N	X	See G031 DRIVER'S SUN VISOR LIGHT	2
				See G032 PASSENGER SIDE SUN VISOR LIGHT	2
2	1	NZ		See D217 REAR/COURTESY LIGHT WIRING COUPLING	7
4	1.5	N		See D037 REAR COUPLING/ CENTRE CONSOLE	3
5	1.5	N		See P052 REAR CURRENT SOCKET	3
6		N		See D030 DRIVER'S FRONT DOOR COUPLING	3
7	1.5	N		See D037 REAR COUPLING/ CENTRE CONSOLE	6
8	2	NZ		See I050 INERTIA SWITCH	1
9	2.5	N		See D030 DRIVER'S FRONT DOOR COUPLING	26
10	2.5	N		See D031 PASSENGER FRONT DOOR COUPLING	26
11		NZ		See D217 REAR/COURTESY LIGHT WIRING COUPLING	17
13		N		See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
14		N		See G010G FRONT COURTESY LIGHT (REAR)	2
15	1	NB		See D070B DRIVER'S SEAT COUPLING (REAR)	12
16	1	NZ		See D070B DRIVER'S SEAT COUPLING (REAR)	10
17	1	NB		See D071B PASSENGER SEAT COUPLING (REAR)	12
18	1	NZ		See D071B PASSENGER SEAT COUPLING (REAR)	10

High setup

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N	X	See G031 DRIVER'S SUN VISOR LIGHT	2
				See G032 PASSENGER SIDE SUN VISOR LIGHT	2
2	1	NZ		See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	7
4				See D037 REAR COUPLING/ CENTRE CONSOLE	3
5	1.5	N		See P052 REAR CURRENT SOCKET	3
6		N		See D030 DRIVER'S FRONT DOOR COUPLING	3
7	1.5	N		See D037 REAR COUPLING/ CENTRE CONSOLE	6
8	2	NZ		See I050 INERTIA SWITCH	1
9	2.5	N		See D030 DRIVER'S FRONT DOOR COUPLING	26
10	2.5	N		See D031 PASSENGER FRONT DOOR COUPLING	26
11		NZ		See G010C FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	2
13		N		See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	2
14		N		See G010G FRONT COURTESY LIGHT (REAR)	2
15	1	NB		See D070B DRIVER'S SEAT COUPLING (REAR)	12
16	1	NZ		See D070B DRIVER'S SEAT COUPLING (REAR)	10
17	1	NB		See D071B PASSENGER SEAT COUPLING (REAR)	12
18	1	NZ		See D071B PASSENGER SEAT COUPLING (REAR)	10
