GENERAL REMARKS - BRAKES

SPECIFICATIONS

The braking system is the power assisted hydraulic type, comprising two crossover, independent ciruits (each circuit acting on one front wheel and the diagonally opposite rear wheel) to ensure braking and stability even if one of the circuits fails.

The system is also equipped with the following assisted braking and steering systems:

- ABS: anti-lock brakes;

- EBD: electronic brakeforce distribution between the front and rear wheels;

- ASR: traction control via management of the brakes and engine control unit;

- MSR: engine brake control by means of engine control unit management;

- VDC: vehicle electronic stability control;

- HBA: automatic increase in braking pressure during emergency braking;

- Hill Holder: assisted hill start system that keeps the vehicle braked while parked on slopes and automatically releases the brakes when the driver wishes to set off.

The vehicle is equipped with an ABS/EBD brake control system.

The ABS is fitted parallel to the hydraulic braking system so that should it not work braking would still be guaranteed.

The ABS incorporates the EBD function (Electronic Brake force Distribution) therefore the hydraulic system does not have a rear load proportioning valve.

ABS/EBD SYSTEM

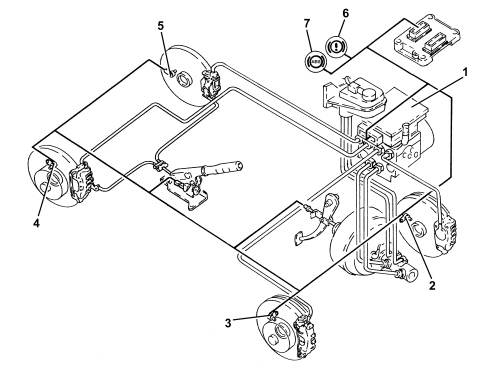

View of assembly

1. ABS/EBD control unit

2. Left front wheel sensor

3. Right front wheel sensor

4. Right rear wheel sensor

5. Left rear wheel sensor

6. EBD warning light

7. ABS warning light

Specifications

The ABS control unit implements the ABS and EBD functions.

The ABS control unit is connected to the front wiring, the system cable loom is incorporated with the engine compartment cable loom.

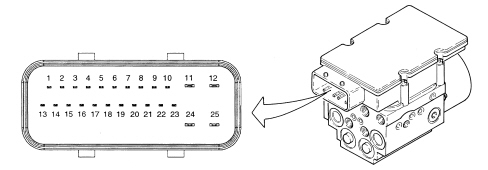

The pin out of the ABS control unit with EBD is different from control units with ASR and VDC functions.

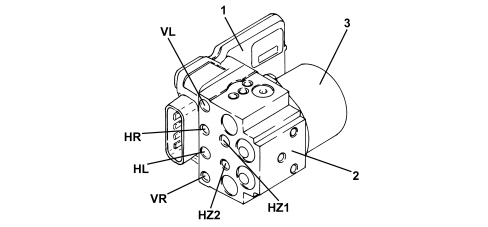

Composition

The ABS consists of:

- an electronic control unit integral with the hydraulic control unit

- an electrohydraulic control unit that modulates braking pressure by means of eight solenoids, two for each wheel

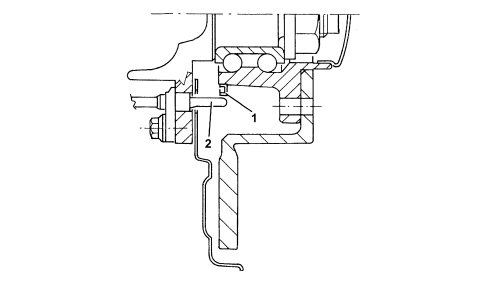

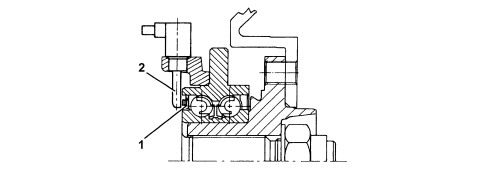

- four active sensors that detect the angular rotating speed of the wheels.

- wiring with specific connector

Operation

Introduction

The electronic control unit processes signals from the active sensors and brake light control switch. It identifies the wheel or wheels with a tendency to lock (maximum slip between wheel and road surface) by means of the control unit software and modulates the brake fluid pressure selectiely for the front wheels and in tandem for the rear wheels (select-low function).

The ABS modulates brake pressure in accordance with three basic stages:

- pressure maintenance stage

- pressure reduction stage

- pressure increase stage

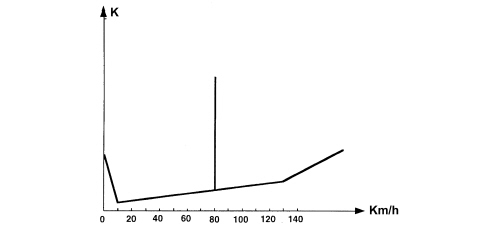

If operation is requested, the ABS stays active at speeds greater than 2.7 km/h. After that, it cuts out to allow the car to stop. After each key ON and when a speed of 6 km/h is exceeded, the control unit carries out an operation check on the solenoids and pump engine. The control unit also tests the sensors when a speed of 12 km/h is exceeded.

Operating logics

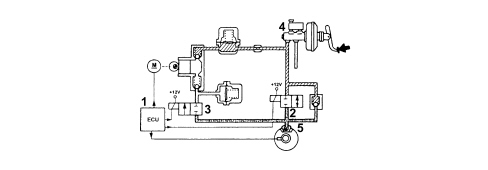

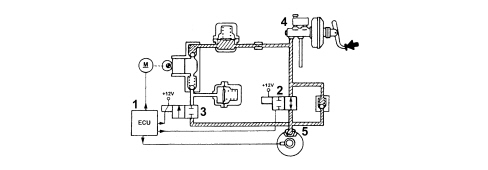

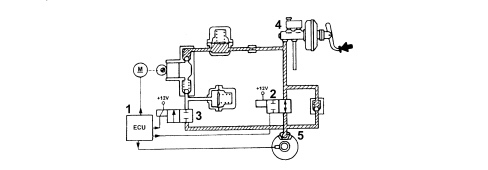

PRESSURE INCREASE STAGE WITHOUT ABS OPERATION

When the brake pedal is pressed, the electronic control unit (1):

- does not supply load solenoid (N.O.) (2)

- does not supply discharge solenoid (N.C.) (3)

The pressure generated by brake pump (4) therefore reaches brake calipers (5) without undergoing changes.

EXAMPLE OF ABS OPERATION

Pressure maintenance stage

Control unit (1):

- supplies load solenoid (N.O.) (2)

- does not supply discharge solenoid (N.C.) (3)

Therefore the hydaulic connection between the brake pump (4a) and brake calliper (5) is broken.

The pressure in brake caliper (5) remains constant even when pressure on the brake pedal is increased.

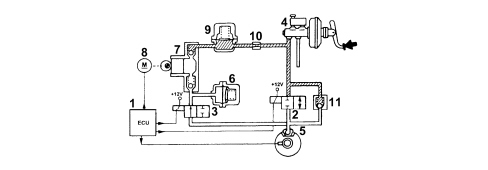

Pressure reduction stage

Control unit (1):

- supplies load solenoid (N.O.) (2)

- does not supply discharge solenoid (N.C.) (3)

The hydraulic connection between brake pump (4) and brake caliper (5) is broken and discharge solenoid (3) opens and brings brake caliper (5) into communication with low pressure accumulator (6) and scavenger pump (7).

Control unit (1) also supplies motor (8) controlling scavenging pump (7) to restore the fuel taken to the brake callipers (5) to the main circuit.

The fluid flows through high pressure accumulator (9) and restriction (10) that performs a damping function.

The system is equipped with a check valve (11) fitted in parallel with load solenoid (2) that allows fast reduction of pressure in brake caliper (5) during brake pedal release.

Pressure increase stage

Control unit (1):

- does not supply load solenoid (N.O.) (2)

- does not supply discharge solenoid (N.C.) (3)

The fluid taken into the main circuit is then free to return to brake caliper (5) and increase the pressure acting on the brake caliper.

EBD function (Electronic Brake-Force distribution)

The EBD function controls the distribution of brakeforce and therefore replaces the conventional mechanical load proportioning valve to allow:

- independent action on the rear brake callipers

- improved brakeforce distribution

- perform in optimum manner under any load condition (static or dynamic), driving conditions (in a straight line or corner) and when the vehicle is in any state of repair (worn tyres, brakes and suspension)

- implementation of a strategy that follows the ideal distribution curve.

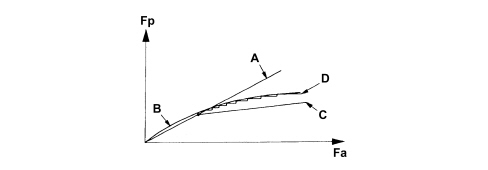

Fa - Front axle brake force

Fp - Rear axle brake force

A - Distribution curve implemented by the brake system

B - Ideal distribution curve

C - Distribution curve implemented by a conventional hydraulic load proportional valve

D - Distribution curve implemented by the EBD function

EBD function failure is indicated by simultaneous activation of:

- ABS warning light;

- low brake flud and/or handbrake on warning light.

Under these conditions, the car must be driven with extreme caution to the nearest authorised workshop to check the system.

RECOVERY

The electronic control unit is equipped with a safety circuit that monitors ABS efficiency.

With key on, the safety circuit carries out an initial autotest for 4 seconds to check:

- electronic control unit operation;

- solenoid operation.

Every time the car starts off from a standstill, the safety circuit checks for signals from active sensors.

When the car is in motion, the safety circuit works as follows:

- continually compares angular wheel speed with the calculated reference speed

- checks memory condition

- checks operation of both relays, the solenoids and the pump motor

- constantly monitors battery voltage.

- monitors the efficiency of the brake pedal switch.

If the safety circuit detects one or more faults in system components during the check stage, the safety circuit operates as follows:

- deactivates the ABS while still guaranteeing operation of the conventional braking system

- indicates the fault status to the driver by turning on a warning light on the control panel.

ASR TRACTION CONTROL/ADJUSTMENT DEVICES

In addition to the ABS EBD system, the vehicle is also equipped with a system for controlling the stability of the vehicle VDC which includes the traction control system ASR.

The VDC system, in particular, thanks to slewing sensors and steering wheel angle sensors, guarantees the monitoring of the dynamics of the entire vehicle thereby improving active safety.

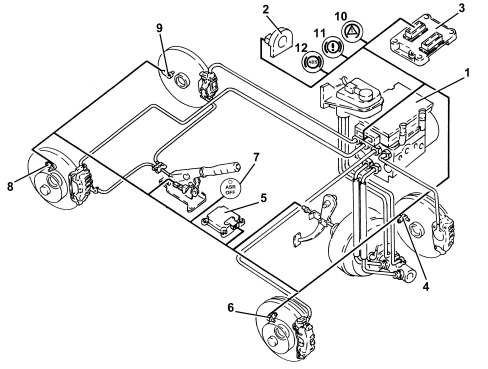

View of assembly

1. ABS/VDC control unit

2. Steering angle sensor

3. Engine management control unit

4. Left front wheel sensor.

5. Slewing/lateral acceleration sensor

6. Right front wheel sensor.

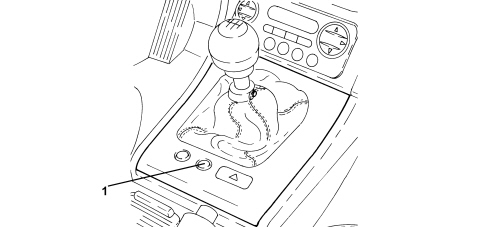

7. ASR off button with warning light

8. Right rear wheel sensor.

9. Left rear wheel sensor.

10. VDC warning light

11. EBD warning light

12. ABS warning light

Specifications

Driving a vehicle in all conditions where the physical limits of grip and, consequently, stability may be reached can be a difficult task for the average driver therefore in order to further improve safe driving conditions an electronic system capable of assisting the driver with this difficult task is available.

The systems currently employed to ensure safer driving in particular conditions are mainly the A.B.S. which controls braking and the T.C. and systems which control traction during acceleration through action on the brakes (T.C.) and traction/drive torque during acceleration and release through action on the brakes and on the engine control system motorized throttle (A.S.R./M.S.R.).

The VDC system includes all the above listed functions ensuring optimum dynamic control of the vehicle with the addition of specific sensors:

- steering angle sensor on the steering wheel

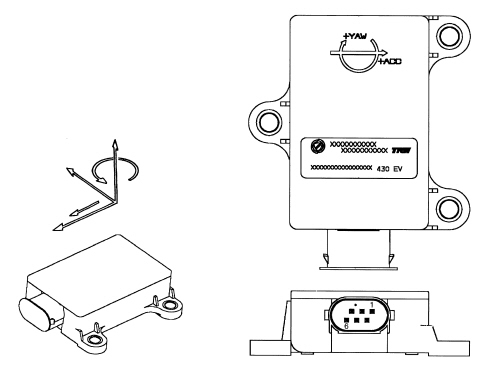

- slewing/lateral acceleration sensor at the centre of gravity under the centre tunnel.

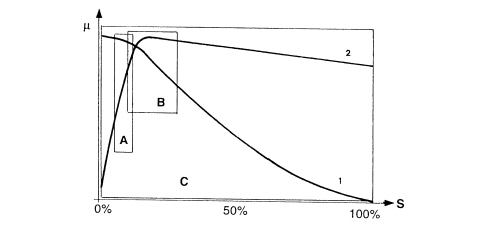

µ - Wheel grip

S - Slipping

A - EBD intervention area

A - ABS intervention area

C - VDC intervention area

1 - Lateral force curve

2 - Longitudinal force curve

As can be seen from the grip/slipping diagram, the area covered by the VDC system is larger than that covered by a conventional ABS/EBD system.

The VDC system cannot be switched off as it is a safety system; the A.S.R./M.S.R. function, on the other hand, can be switched off via the button in the centre console.

To ensure the drive of the vehicle (drive wheels) with snow chains fitted or in particular road surface conditions (snow, ice, deep mud, sand or gravel) it is advisable to switch the A.S.R. off.

The intervention of the VDC system is signalled by a special warning light in the instrument panel node

Composition

The VDC system consists of:

- an electro-hydraulic/electronic A.B.S. control unit (with an VD logic)

- interface with the C-CAN line, resident in the ABS control unit for communication with the engine control unit, steering angle sensor and lateral acceleration sensor;

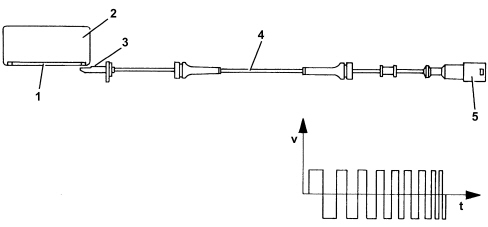

- Magnetic-resistive type wheel speed sensors

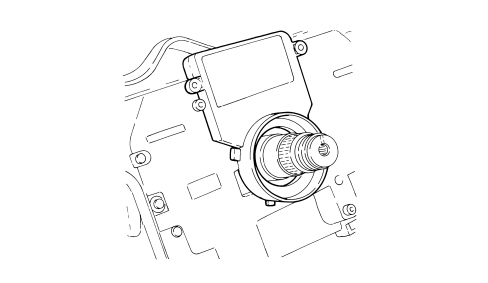

- steering angle sensor with C.A.N. interface (steering angle sensor)

- slewing/lateral acceleration sensor in one piece integral with the CAN interface;

- brake fluid pressure sensor incorporated in the A.B.S. control unit

- ABS-EBD-VDC warning light in the instrument panel controlled via the dedicated serial line

- A.S.R. off switch with a warning light in the button

Operation

The VDC continuously recognizes a loss in grip for the wheels, both longitudinal and transverse, in all driving conditions from braking to acceleration in order to ensure the direction and the stability of the vehicle.

The management of the VDC system is entrusted to the A.B.S. electronic control unit, integrated with a special electro-hydraulic control unit, that allows action on the braking system independently of the action of the user.

The control unit processes the following signals:

- steering wheel rotation angle

- lateral acceleration and slewing

- engine operating conditions:

- wheel rpm

- hydraulic braking system pressure

and uses special algorithms in the electronic control unit software to obtain the figures for the dynamic control of the vehicle:

- longitudinal and transverse sliding between the wheels and the road surface

- axle drift.

Using these figures the system interprets the effective dynamics of the vehicle; having identified all the critical conditions due to environmental factors (e.g. surface with poor grip) or any errors made by the user (e.g. panic situations) and with subsequent intervention on the brakes and the drive torque, the vehicle is restored to good driving conditions.

The system interfaces with:

- NCM for drive torque adjustment via the C-CAN line;

- control panel via a serial line for warning light control.

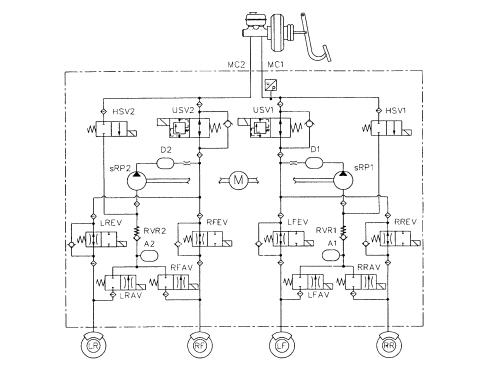

The system is combined with a power unit with a specific brake pump; in addition, the pipes between the brake pump and the A.B.S. control unit have a Titaflex insert because the diameter of the pipe (6mm) is larger than regular pipes (4 mm); this is designed to prevent adverse effects on the operation of the VDC at low brake fluid temperatures.

There is a dedicated line (line K) for the diagnosis of the system.

The VDC system switches on automatically when the vehicle is started up and cannot be switched off by the user; the button in the centre console only switches off the A.S.R. function and only when advisable.

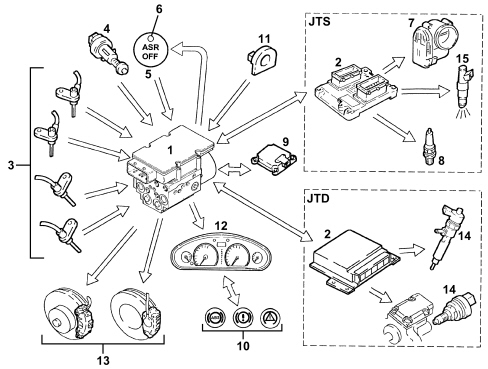

INPUT SIGNALS:

- Wheel speed sensors (from direct line) (3)

- Three stage normally open brake pedal switch (from direct line) (4)

- ASR off button (from direct line) (5)

- engine control unti (2) (from C-CAN line);

- throttle angle position (7) (from C-CAN line) (only for JTS);

- control panel (12);

- Warning light status signal (from dedicated serial line) (10)

- Slewing sensor (rotation of vehicle on vertical axis) (from C-CAN line) (9)

- Lateral acceleration sensor (from C-CAN line) (9)

- Steering angle/steering wheel rotation sensor (from C-CAN line) (11)

- Hydraulic system pressure sensor (from direct line) (1)

OUTPUT SIGNALS:

- Brake pressure modulation control (13)

- Ignition advance reduction control (from C-CAN line) (8) (only for JTS);

- Engine power management control (from C-CAN line) (7) (only for JTS);

- Ignition advance reduction control (from C-CAN line) (15) (only for JTS);

- Engine power management control (from C-CAN line) (14) (only for JTD);

- VSO signal (vehicle speed) (12)

- VDC/ASR-ABS-EBD warning liight control on panel (from dedicated serial line) (10);

- ASR off LED (6)

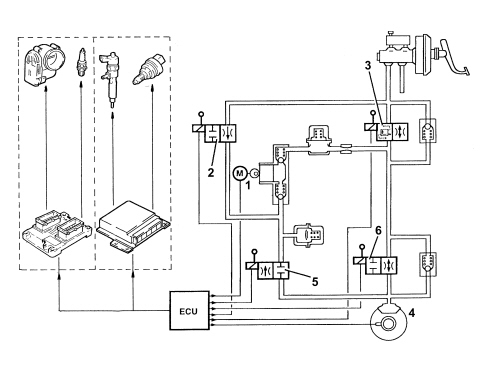

Operating logics

As stated previously, in addition to controlling the slipping of the vehicle in a lengthwise direction, the VDC system also controls slipping in a sideways direction and, as a result, controls the lateral stability of the vehicle.

The lateral stability of a vehicle is the result of the reaction of the tyres to lateral forces due to increased centrifugal force.

The action of the lateral forces produce a variation in the drift angle of the wheels and, consequently, a variation in the axle drift (drift angle = difference between the desired route and the effective route).

The lateral forces do not, however, act equally on all four wheels because they are not subject to the same load conditions, in effect the load on the wheel differs depending on the situation the wheel is in, namely:

- acceleration (lightening of the front axle and loading of the rear axle)

- braking (loading of the front axle and lightening of the rear axle)

- bend to the right/left (loading or the outer wheels and lightening of the inner wheels)

- accelerating/decelerating round a bend (combination of the cases mentioned above).

It is obvious that if the lateral forces acting on the individual wheels vary, there will also be a variation in the forces acting on the vehicle axles; consequently the lateral forces acting on the front axle overcome those on the rear axle and viceversa determining a rotation (moment) on the vehicle axis of the vehicle (slewing axis).

The moment of slewing affects the behaviour of the vehicle producing either understeer or oversteer.

Understeer for a vehicle is when, with increasing lateral acceleration, the drift angle for the front axle increases greatly compared with that of the rear axle. In this case, the vehicle tends to go straight ahead (take the curve wide) when cornering.

Oversteer for a vehicle is when, with increasing transverse acceleration, the drift angle for the rear axle increases greatly compared with that of the front axle. In this case the vehicle tends to turn around on itself (the rear axle tends to go straight, therefore the vehicle "hugs" the bend).

In order to keep the effect of lateral forces under control and limit the slewing moment, the A.B.S. control unit must firstly calculate the behaviour of vehicle set by the driver using:

- steering wheel angle sensor

- accelerator pedal position;

- brake circuit pressure

after which the control unit should check the actual behaviour of the vehicle through:

- The wheel sensors (vehicle speed/wheel speed),

- lateral acceleration sensor

- slewing sensor.

The control unit is able to:

- detecting actions carried out by the user, in effect, through the position of the steering wheel it checks the number of degrees (wide radius or narrow radius bends) and the speed for rotating the steering wheel (sharp or gentle rotations) and, using the position of the throttle and the brake pressure when accelerating or braking, how the user is taking the bend or deviating from the straight path.

- detecting the actual behaviour of the vehicle given the environmental variables, e.g. slippery surface, reaction of the vehicle to incorrect manoeuvres by the user, etc., in order to identify the moment of slewing and the lateral sliding of the axles via the sensors on the four wheels and the slewing/lateral acceleration sensor.

These two operations are necessary to superimpose the mathematical model mapped in the control unit on the effective behaviour of the vehicle in order to identify the state in which the vehicle is in (understeer or oversteer) and decide the action for the brakes and the engine

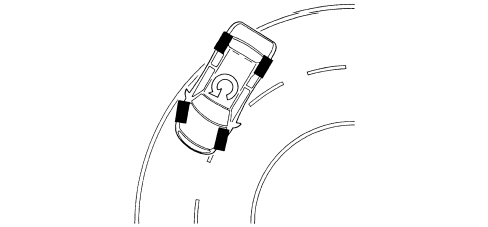

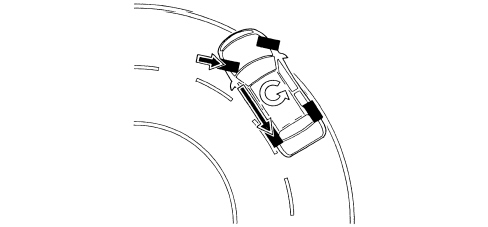

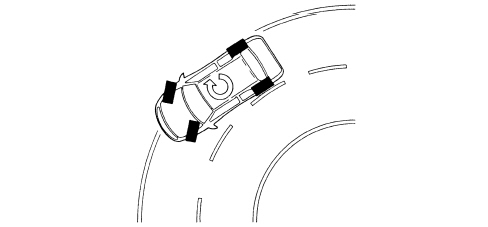

UNDERSTEER ON CORNERS

The control unit verifies the presence of understeer (mainly from the drift of the front axle), corrects the behaviour of the vehicle, braking the inner wheels round the bend in order to create an opposing moment which will lead the vehicle towards the centre of the bend and, possibly, reducing the drive torque.

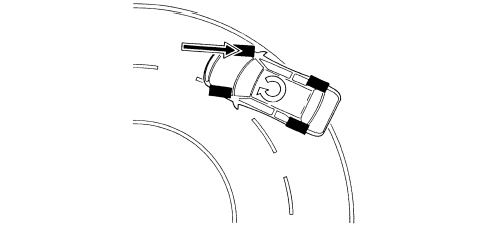

OVERSTEERIN ON CORNERS

In the presence of understeer (mainly from the drift of the rear axle) the control unit corrects the behaviour of the vehicle, braking the outer front wheel round the bend in order to create an opposite slewing moment, if necessary increasing the drive torque.

The system intervenes before the oversteer and understeer values are too high in order to limit the corrective measures that have to be taken which could make handling difficult.

ABRUPT VARIATIONS FROM A STRAIGHT PATH (SLALOM/OVERTAKING)

In the case of sharp variations from the path (e.g. overtaking, slalom), the control unit identifies possible oversteer and understeer conditions and corrects the path of the vehicle acting as described in the cases mentioned previously.

ABRUPT VARIATION FROM A STRAIGHT PATH (DRIVING OVER DIFFERENT SURFACES)

The control unit is capable of detecting deviations in the path and the prevalence of axle drift, correcting the path through suitable action on the brakes and the engine.

ABRUPT ACCELERATION/DECELERATION

The control unit uses the A.S.R./M.S.R. strategy also controlling the lateral acceleration of the vehicle and, as a result, regulating the action on the front and rear brakes and on the engine torque in a more complete way than on vehicles with ASR only.

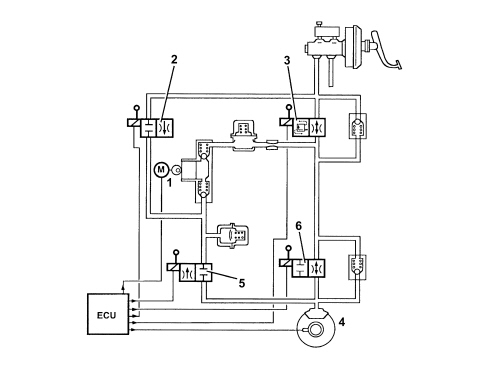

INTERVENTION - INTERVENTION TIMES UNDER CONDITIONS WHERE ROAD SURFACE GRIP IS GOOD (ASPHALT)

For JTS versions:

Engine torque reduction by the engine management control unit through the alteration of the ignition advances, 6/100 of a second after the slipping limit is exceeded.

A further reduction in torque through a decrease in the throttle opening (by the engine management control unit through the motorized throttle body after 15/100 of a second).

Intervention of the hydraulic system (braking force on the drive wheels) after 2/10 of a second.

For JTD versions:

Torque reduction via the engine control unit by reducing fuel flow, after 6/10 second.

Intervention of the hydraulic system (braking force on the drive wheels) after 2/10 of a second.

OPERATION UNDER CONDITIONS OF POOR GRIP

The system is capable of recognizing these conditions by comparing the acceleration of the drive wheels with the torque transmitted by the engine (engine load from the engine management control unit).

The system behaves in the same way as for both drive wheels slipping in good road grip conditions (asphalt) and the intervention levels are at the lower limit.

ONLY ONE DRIVE WHEEL SLIPPING

Intervention-intervention times

For JTS versions:

Torque reduction by the engine management control unit through the alteration of the ignition advances, 6/100 of a second after the slipping limit is exceeded.

A further reduction in torque through a decrease in the throttle opening (by the engine management control unit through the motorized throttle body) after 15/100 of a second.

Intervention of the hydraulic system, a braking action exerted on the wheel that it slipping to guarantee a resistive force on the side with poor grip (T.C.). This resistive force allows the differential to transmit an equal torque with good grip.

For JTD versions:

Torque reduction via the engine control unit by reducing fuel flow, after 6/100 second.

Intervention of the hydraulic system, a braking action exerted on the wheel that it slipping to guarantee a resistive force on the side with poor grip (T.C.). This resistive force allows the differential to transmit an equal torque with good grip.

REGULATION OF ENGINE BRAKING TORQUE DURING OVER-RUN (MSR)

Vehicle instability during deceleration in poor grip conditions

The system recognizes this condition from the engine load, from the speed of the front and rear wheels and from the brake pedal sensor. In this case there is an increase in drive torque through the intervention of the engine management control unit opening the motorized throttle (petrol versions) or fuel flow (JTD versions) to overcome the natural instability of the vehicle due to the engine braking torque in poor grip conditions.

ASR CUT-OUT

If the A.S.R./M.S.R. is cut out, the following functions remain activated:

- ABS/EBD;

- T.C. up to a speed of 40 km

- VDC:

CUT-IN THRESHOLD

The different intervention levels between 2 and 6 km/h depend on environmental factors; some of the conditions have been described in the operating logics, others are:

- high acceleration level, high level thresholds;

- vehicle speed;

- tyre type (normal or winter). With winter tyres and good grip, high level thresholds; with winter tyres and low grip, thresholds are low. The system is capable of recognizing these conditions by comparing the acceleration of the drive wheels with the torque transmitted by the engine (engine load from the engine management control unit).

The ASR function is activated in all vehicle speed conditions, however, the intervention of the brakes is excluded above 40 km/h.

VDC intervention display

The intervention of the VDC system is shown by the special warning light in the instrument panel flashing (5 Hz d.c. 50%).

the VDC system improves driving safety but there are limited situations which cannot be controlled by the VDC system, therefore it is not seen as a device which improves the performance of the vehicle but as a device that improves the safety of the vehicle.

DIAGNOSTIC FUNCTIONS

The ABS control unit is capable of carrying out the autodiagnosis of the system and, in the case of a fault, can:

- deactivate the entire system;

- partly deactivate the system.

Operation of warning lights

The ABS control unit activates the warning lights according to the following logic:

- with the VDC on, the warning light in the panel is off and the warning light in the ASR button is off

- with ASR off, the VDC warning light on the control panel is off and the warning light on the ASR button is on;

- with the VDC activated, the warning light in the panel flashes and the warning light in the button is off

- when the VDC is faulty, the warning light on the control panel is on.

As the system is connected to the C-CAN line it has a diagnostic line known as line K. The diagnosis of the system can be carried out using the diagnostic equipment connected to the diagnostic socket.

Description of components

HYDRAULIC SYSTEM OPERATION

The electro-hydraulic unit on the version equipped with VDC has 4 additional solenoid valves.

When the (normally closed) intake solenoid valve is activated, the additional quantity of fluid required to increase the pressure and brake the wheel(s) can be received.

When the (normally open) solenoid valve is activated, the modulated pressure produced by the supply pump can be maintained in the circuit.

When the ESP system is not intervening, the electronic control unit:

- does not activate the (N.C.) intake solenoid valve (2).

- does not activate the (N.A.) operating solenoid valve (3).

In this way the system operates during the following stages:

- pressure increase;

- pressure maintenance;

- pressure reduction;

- pressure increase and resupply

During the intervention of the VDC system, the electronic control unit:

- activates the hydraulic pump (1)

- does not activate the (N.C.) intake solenoid valve (2).

- activates the (N.A.) operating solenoid valve (3).

Therefore the pressure produced by the pump (1) reaches the brake caliper and is modulated, on the request of the electronic control unit, by the discharge (5) and pressurizing (6) solenoid valves.

DESCRIPTION OF COMPONENTS

Electrohydraulic unit

The electro-hydraulic unit consists of an electronic control unit and an electro-hydraulic control unit.

1. Electronic control unit

2. Electrohydraulic control unit

3. Recovery pump assembly

Electronic control unit

The electronic control unit carries out the following functions:

- acquiring data coming from the wheel rpm sensors

- memorises the control parameters defined during the vehicle P.D.I.

- memorises the control software

- processes the data acquired

- controls the braking process

- detecting faults in the braking system components

- memorizing the fault codes and activating the ABS/EBD/ASR/VDC warning lights

- transmits and receives data via the diagnostic connector

- conversing with the engine management control unit

- controlling the ASR/MSR/VDC process;

- transmitting and receiving data via the C-CAN line.

PIN OUT

1 - CAN-L line

2 - CAN-H line

3 - ASR switch off

4 - ASR warning light off

5 - Not connected

6 - Diagnostics

7 - Right front sensor positive

8 - Right front sensor sensor negative

9 - Right rear sensor positive

10 - Right rear sensor negative

11 - Signal earth

12 - Supply

13 - CAN-L line

14 - CAN-H line

15 - Not connected

16 - VSO (vehicle speed)

17 - Brake warning light switch

18 - Serial WL (control panel warning light serial)

19 - Left front sensor positive

20 - Left front sensor negative

21 - Left rear sensor positive

22 - Left rear sensor negative

23 - VIGN (+ 5 ignition)

24 - Pump earth

25 - Pump supply

Hydraulic control unit

It performs the function of modulating the pressure of the fluid at the brake calipers via solenoid valves with the following operating stages:

- brake fluid pressure increase

- brake fluid pressure maintenance

- brake fluid pressure decrease.

The electro-hydraulic control unit is available from Parts filled with fluid; take care not to remove the protective caps or turn it upsidedown whilst moving it.

A sensor is fitted on the electro-hydraulic control unit for monitoring the pressure of the brake; this sensor is supplied together with the hydraulic unit so it cannot be replaced individually.

The electro-hydraulic control unit consists of:

- twelve 2-way solenoid valves

- a dual circuit scavenging pump

- two low pressure accumulators

- two high pressure accumulators

- brake fluid pressure sensor.

Steering sensor

The steering angle sensor has the task of measuring the angles in degrees and the rotation speed of the steering wheel and making these figures available via the C-CAN (steering angle sensor node).

The sensor is built into the steering wheel stalk unit and cannot be dismantled individually.

The sensor measures the following via internal electronics:

- angular position of the steering column;

- the rotation speed of the steering column.

This information is processed directly by the sensor and is made available at the brake node via the C-CAN.

The sensor has an angular measurement range of -720° - +720° and an angular resolution of 0.7°

The sensor must be zeroed in relation to the position of the steering wheel in order to work properly. This is carried out as follows:

- Turn the ignition key to the OFF position or remove;

- re-insert the key and start the engine;

- turn the steering wheel (even with the vehicle stationary) through 1/2 turn to the left;

- turn the steering wheel (even with the vehicle stationary) through 1/2 turn to the right;

- drive a short section in a straight line (wheels straight) for at least 100 metres and at a speed over 8 km until the warning light goes off.

The sensor has an autodiagnostic function and is capable of carrying out a check on the plausibility of the information processed.

Lateral yaw/acceleration sensor

The two yaw and lateral acceleration sensors are designed to measure rotation of the vehicle on the vertical axis (yaw) and lateral acceleration.

Connection to the ABS control unit is via the CAN line.

The sensor has the following functional specifications:

Supply voltage:

- minimum value 6.0 V

- maximum value 21.5 V

- nominal value 12 V

Operating temperature:

- Minimum value -40°C

- Maximum value +85°C

Current uptake at 12 V:

- nominal value 50 mA

Lateral acceleration sensor:

- Measurement range ± 1.5 g

The sensor consists of a plastic casing that houses the sensitive elements which detect slewing and lateral acceleration and the electronic management.

The sensor has a connector with six pins all of which are connected.

The sensor is located at the centre of gravity, on the tunnel between the two front seats.

The sensor receives a direct power supply from the battery and, simultaneously, provides the yaw and acceleration signal to the ABS control unit via the CAN line.

Active sensors

The adoption of active sensors offers the following advantages:

- less sensitivity to the distance between the sensor and the magnetic ring (gap)

- a reduction in sensitivity to electro-magnetic interference

- a saving in weight and size;

- a simplification of the transmission couplings through the elimination of the phonic wheels.

Active sensors consist of two fundamental components:

- a multipolar magnetic coder (1) built into the bearing of the wheel hub bearing with controls

- a magnetoresistance receiver (2) facing the codifier.

FRONT SENSORS

REAR SENSORS

The active sensor operates according to the variation in the internal electrical resistance according to the intensity and direction of the lines of force of an external magnetic field (multipolar magnetic codifier) producing a variable square wave signal whose frequency varies according to the rotation speed of the wheel, but with a constant amplitude.

The active sensor is therefore an integrated electronic sensor, connected by means of a cable to the ABS control unit, from which it receives an electrical supply and to which it transmits the speed of the vehicle.

The flywheel is a multipolar ring, an elastomer with a certain quantity of magnetic particles which, by means of a special magnetization technique, are orientated to produce different magnets with alternate North South poles in a circumference arrangement.

Asr on/off button

It has the task of switching the ASR/MSR system off and has an LED.

Button 1) is integral with the central console.
