G010 front courtesy light

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Interior lights › G010 front courtesy light

Connectors and pin-outsG010 front courtesy light

G010 FRONT COURTESY LIGHT

G010A – Sun roof bridge

Powered sunroof

Wiring	Colour
See 71 SUN ROOF BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LR		See D217 REAR/COURTESY LIGHT WIRING COUPLING	1
2		AR		See D217 REAR/COURTESY LIGHT WIRING COUPLING	2
3		AB		See D217 REAR/COURTESY LIGHT WIRING COUPLING	3
4		AM		See D217 REAR/COURTESY LIGHT WIRING COUPLING	4
5		GL		See D217 REAR/COURTESY LIGHT WIRING COUPLING	5
6	1	RV		See D217 REAR/COURTESY LIGHT WIRING COUPLING	6
7	1	NZ		See D217 REAR/COURTESY LIGHT WIRING COUPLING	7
8		VN		See D217 REAR/COURTESY LIGHT WIRING COUPLING	8
9		AL		See D217 REAR/COURTESY LIGHT WIRING COUPLING	9
11		MB		See D217 REAR/COURTESY LIGHT WIRING COUPLING	11
12		M		See D217 REAR/COURTESY LIGHT WIRING COUPLING	12

G010A – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LR	X	See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	23
				See G020 REAR (CENTRE) COURTESY LIGHT	6
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See G010C FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
				See G010G FRONT COURTESY LIGHT (REAR)	1
2		AR		See M001E BODY COMPUTER (REAR)	28
3		AB		See M060B AIR BAG CONTROL UNIT (REAR)	25
4		AM		See M060B AIR BAG CONTROL UNIT (REAR)	22
5		GL	X	See M001E BODY COMPUTER (REAR)	40
				See D037 REAR COUPLING/ CENTRE CONSOLE	5
				See D037 REAR COUPLING/ CENTRE CONSOLE	2
6	1	RV	X	See M001E BODY COMPUTER (REAR)	27
				See G020 REAR (CENTRE) COURTESY LIGHT	1
				See G010C FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	1
7	1	NZ		See C015 DASHBOARD EARTH, DRIVER'S SIDE	2
8		VN		See M001E BODY COMPUTER (REAR)	21
9		AL		See M060B AIR BAG CONTROL UNIT (REAR)	26
11		MB		See M001E BODY COMPUTER (REAR)	30
12		M		See M001E BODY COMPUTER (REAR)	37

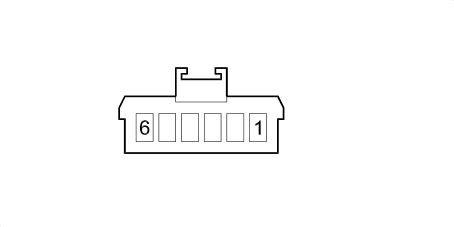

G010B – Sun roof bridge

Powered sunroof

Wiring	Colour
See 71 SUN ROOF BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LG		See D217 REAR/COURTESY LIGHT WIRING COUPLING	13
2		HV		See D217 REAR/COURTESY LIGHT WIRING COUPLING	14
3		AB		See G010F FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	1
4		AM		See G010F FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	2
5		AN		See G010F FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
6		V		See D217 REAR/COURTESY LIGHT WIRING COUPLING	15

G010B – Rear

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LG		See M084A PARKING SENSOR CONTROL UNIT (REAR)	13
2		HV		See M084A PARKING SENSOR CONTROL UNIT (REAR)	4
3		AB		See G010F FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	1
4		AM		See G010F FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	2
5		AN		See G010F FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
6		V		See M001E BODY COMPUTER (REAR)	35

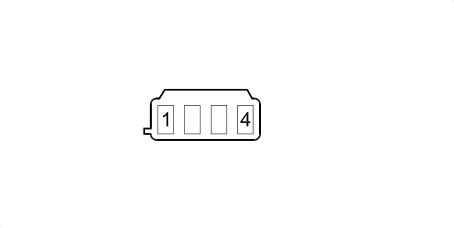

G010C – Sun roof bridge

Powered sunroof

Wiring	Colour
See 71 SUN ROOF BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		R		See D217 REAR/COURTESY LIGHT WIRING COUPLING	16
2		NZ		See D217 REAR/COURTESY LIGHT WIRING COUPLING	17
3		CB		See D217 REAR/COURTESY LIGHT WIRING COUPLING	18
4		SV		See D217 REAR/COURTESY LIGHT WIRING COUPLING	19

G010C – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		R	X	See M001E BODY COMPUTER (REAR)	27
				See G026 RIGHT REAR COURTESY LIGHT	3
				See G025 LEFT REAR COURTESY LIGHT	3
				See G020 REAR (CENTRE) COURTESY LIGHT	1
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	6
2		NZ		See C015 DASHBOARD EARTH, DRIVER'S SIDE	11
3		CB	X	See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	23
				See G020 REAR (CENTRE) COURTESY LIGHT	6
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	1
				See G010A FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	1
				See G010G FRONT COURTESY LIGHT (REAR)	1
4		SV	X	See M001D BODY COMPUTER (REAR)	7
				See P065 ELECTRO-CHROMIC INTERIOR REAR VIEW MIRROR	3

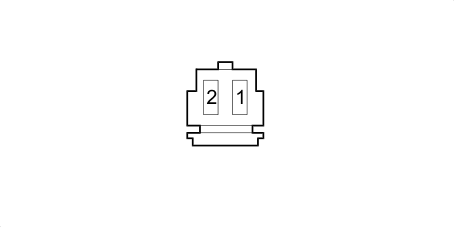

G010D – Rear

Connect Nav+

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		B		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	7
2		SCH		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	6

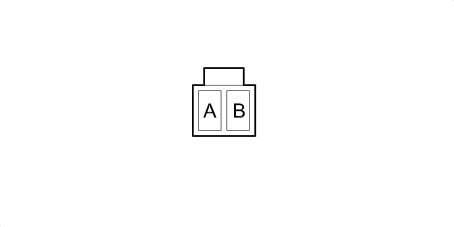

G010E – Rear

up to 12/05 · BOSE System

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A		LN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	19
B		SCH		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	18

G010F – Sun roof bridge

Powered sunroof

Wiring	Colour
See 71 SUN ROOF BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		See G010B FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
2		AM		See G010B FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	4
3		AN		See G010B FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	5

G010F – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		See G010B FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	3
2		AM		See G010B FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	4
3		AN		See G010B FRONT COURTESY LIGHT (SUN ROOF BRIDGE)	5

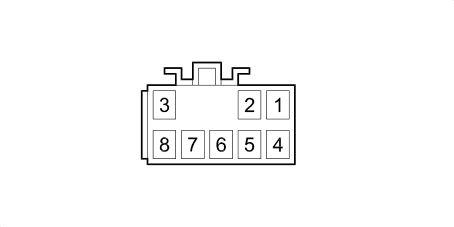

G010G – Rear

Connect Nav+

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		N		See C015 DASHBOARD EARTH, DRIVER'S SIDE	14
3		BV		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	2
4		BM		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	3
