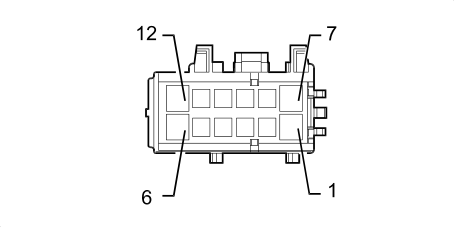

D070 DRIVER'S SEAT COUPLING

D070A – Rear

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LS		See M060B AIR BAG CONTROL UNIT (REAR)	14
2		LN		See M060B AIR BAG CONTROL UNIT (REAR)	13
3		CB		See M060B AIR BAG CONTROL UNIT (REAR)	19
4		NZ		See C050B AIR BAG SYSTEM EARTH (REAR)	8
5		NZ		See C050B AIR BAG SYSTEM EARTH (REAR)	4
7		H		See M060B AIR BAG CONTROL UNIT (REAR)	6
8		G		See M060B AIR BAG CONTROL UNIT (REAR)	5

D070A – Left seat

Wiring	Colour
See 36 LEFT SEAT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1				See Q020 DRIVER'S SEAT BELT PRETENSIONER
2				See Q020 DRIVER'S SEAT BELT PRETENSIONER
3				See
4				See
5		N		See Q030B DRIVER'S SIDE BAG (LEFT SEAT)
7		CN		See Q030A DRIVER'S SIDE BAG (LEFT SEAT)	1
8		AG		See Q030A DRIVER'S SIDE BAG (LEFT SEAT)	2

D070B – Rear

Wiring	Colour
See 25 REAR	ARANCIONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	HG		See B045A LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR)	12
2		LR	X	See D071B PASSENGER SEAT COUPLING (REAR)	2
				See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	19
				See M084A PARKING SENSOR CONTROL UNIT (REAR)	1
6	2.5	N		See C031 RIGHT REAR EARTH	7
7	2.5	Z		See B045A LUGGAGE COMPARTMENT JUNCTION UNIT (CVB) (REAR)	3
8		BS	X	See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	10
				See D030 DRIVER'S FRONT DOOR COUPLING	20
				See D031 PASSENGER FRONT DOOR COUPLING	20
				See D071B PASSENGER SEAT COUPLING (REAR)	8
				See M063B LUGGAGE COMPARTMENT CONTROL UNIT (NVB) (REAR)	B7
9		NS	X	See B002D JUNCTION UNIT UNDER DASHBOARD (REAR)	28
				See D030 DRIVER'S FRONT DOOR COUPLING	19
				See D031 PASSENGER FRONT DOOR COUPLING	19
				See D071B PASSENGER SEAT COUPLING (REAR)	9
				See M063B LUGGAGE COMPARTMENT CONTROL UNIT (NVB) (REAR)	A7
10	1	NZ		See C015 DASHBOARD EARTH, DRIVER'S SIDE	16
12	1	NB		See C015 DASHBOARD EARTH, DRIVER'S SIDE	15

D070B – Left seat

Wiring	Colour
See 36 LEFT SEAT	ARANCIONE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	M	X	See M170 DRIVER'S FRONT SEAT HEATER CONTROL UNIT	5
				See I065 DRIVER'S SEAT HEATING SWITCH	2
2	1	R		See I065 DRIVER'S SEAT HEATING SWITCH	1
6	2.5	N		See H066A DRIVER'S SEAT MOVEMENT CONTROLS (LEFT SEAT)	5
7	2.5	B		See H066A DRIVER'S SEAT MOVEMENT CONTROLS (LEFT SEAT)	9
8		C		See H066B DRIVER'S SEAT MOVEMENT CONTROLS (LEFT SEAT)	6
9		BR		See H066B DRIVER'S SEAT MOVEMENT CONTROLS (LEFT SEAT)	5
10		LN		See H066B DRIVER'S SEAT MOVEMENT CONTROLS (LEFT SEAT)	8
12	1	N	X	See M170 DRIVER'S FRONT SEAT HEATER CONTROL UNIT	4
				See I065 DRIVER'S SEAT HEATING SWITCH	5
