CAR SIZE
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Minimum variations in measurements with optional tyres fitted.
Height is measured with vehicle unladen.

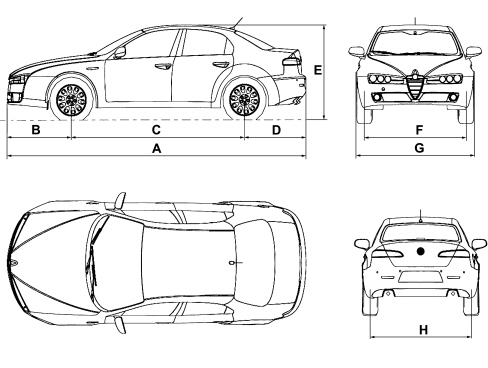

Saloon versions
| 1.8 | 1.9 JTS | 2.2 JTS | 3.2 JTS | 1.9 JTD 8V | 1.9 JTD 16V | 2.4 JTD 20V | |
|---|---|---|---|---|---|---|---|
| A (mm) | 4660 | 4660 | 4660 | 4660 | 4660 | 4660 | 4660 |
| B (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| C (mm) | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| D (mm) | 960 | 960 | 960 | 960 | 960 | 960 | 960 |
| E (mm) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) |
| F (mm) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) |
| G (mm) | 1828 | 1828 | 1828 | 1828 | 1828 | 1828 | 1828 |
| H (mm) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) |
(*) With 215/55 R16” tyres
Luggage compartment capacity (V.D.A. standards): dm3 405

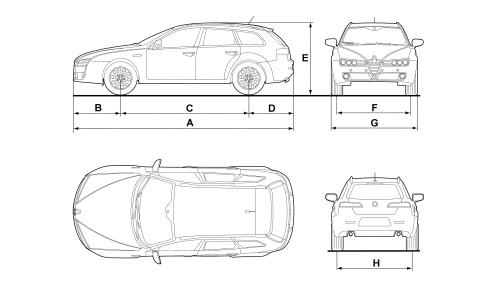

Sportwagon versions
| 1.8 | 1.9 JTS | 2.2 JTS | 3.2 JTS | 1.9 JTD 8V | 1.9 JTD 16V | 2.4 JTD 20V | |
|---|---|---|---|---|---|---|---|
| A (mm) | 4660 | 4660 | 4660 | 4660 | 4660 | 4660 | 4660 |
| B (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| C (mm) | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| D (mm) | 960 | 960 | 960 | 960 | 960 | 960 | 960 |
| E (mm) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) | 1422 1417 (*) |
| F (mm) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) | 1578 1593 (*) |
| G (mm) | 1828 | 1828 | 1828 | 1828 | 1828 | 1828 | 1828 |
| H (mm) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) | 1555 1573 (*) |
(*) With 215/55 R16” tyres
(**) With roof rack/ski rack bars (where fitted): 1452/1447 (with 215/55 R16” tyres)
Luggage compartment capacity (V.D.A. standards): dm3445
