C031 right rear earth

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Earths › C031 right rear earth

Connectors and pin-outsC031 right rear earth

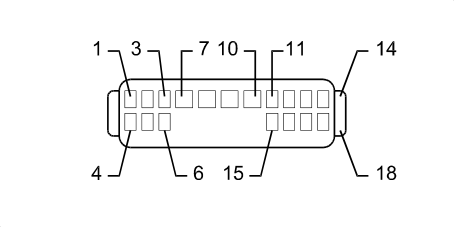

C031 RIGHT REAR EARTH

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See D212A BUMPER REAR COUPLING (REAR BUMPER)	3
2		NZ		See M084A PARKING SENSOR CONTROL UNIT (REAR)	8
3		N		See F031 RIGHT REAR LIGHT CLUSTER	1
4		N		See D031 PASSENGER FRONT DOOR COUPLING	3
7	2.5	N		See D070B DRIVER'S SEAT COUPLING (REAR)	6
8	2.5	N		See M063B LUGGAGE COMPARTMENT CONTROL UNIT (NVB) (REAR)	A1
9	2.5	N		See D071B PASSENGER SEAT COUPLING (REAR)	6
11		N		See D036 RIGHT REAR DOOR COUPLING	B3
