P050 cigar lighter/current socket
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Various consumers › P050 cigar lighter/current socket
Connectors and pin-outsP050 cigar lighter/current socket

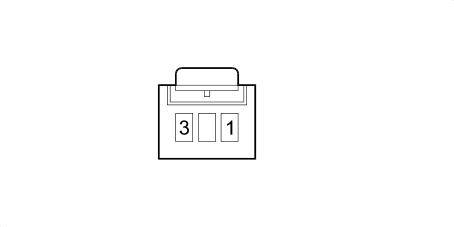

P050 CIGAR LIGHTER/CURRENT SOCKET
| Wiring | Colour |
|---|---|
| See 78 CENTRE CONSOLE BRIDGE | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1.5 | G | See D037 REAR COUPLING/ CENTRE CONSOLE | 1 | |
| 2 | GL | See D037 REAR COUPLING/ CENTRE CONSOLE | 2 | ||
| 3 | 1.5 | N | See D037 REAR COUPLING/ CENTRE CONSOLE | 3 | |
