C020 passenger side dashboard earth

Make

Alfa Romeo

Model

159 Factory Service Manual

Year

2005–2011

Section

Earths › C020 passenger side dashboard earth

Connectors and pin-outsC020 passenger side dashboard earth

C020 PASSENGER SIDE DASHBOARD EARTH

from 01/06

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		See H020 HAZARD WARNING LIGHTS SWITCH	2
2		N		See M001I BODY COMPUTER (DASHBOARD)	9
3		N		See M001I BODY COMPUTER (DASHBOARD)	8
4		N		See H002 STARTING PUSH BUTTON	2
5		N		See H003 IGNITION DEVICE	7
6		N		See M089 STEERING LOCK CONTROL UNIT (NBS)	A4
7	1.5	N		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	10
8	2.5	N		See P020A RADIO (DASHBOARD)	8
9	2.5	N		See P020A RADIO (DASHBOARD)	8
11		N		See H090A SWITCH CONTROL PANEL (DASHBOARD)	8
12		N		See H090A SWITCH CONTROL PANEL (DASHBOARD)	9
13		N		See G030 GLOVE COMPARTMENT LIGHT	1
14		NZ		See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	9
15		NZ		See D047 CLOCK SPRING COUPLING	6
16		N		See M162A BLUETOOTH CONTROL UNIT (DASHBOARD)	15
17		N		See D075 RADIO PHONE COUPLING	10

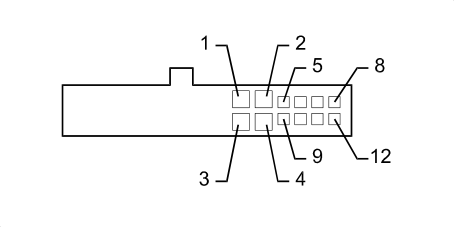

C020A – Dashboard

up to 12/05

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1.5	N		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	10
3	2.5	N		See P020A RADIO (DASHBOARD)	8
5		N		See G030 GLOVE COMPARTMENT LIGHT	1
8		NZ		See D047 CLOCK SPRING COUPLING	6
9		N		See H002 STARTING PUSH BUTTON	2
10		N		See D075 RADIO PHONE COUPLING	10
11		N		See H003 IGNITION DEVICE	7
12		N		See M089 STEERING LOCK CONTROL UNIT (NBS)	A4

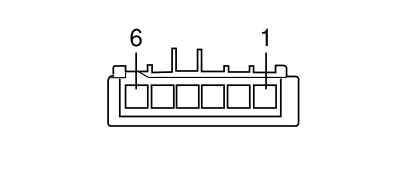

C020B – Dashboard

up to 12/05

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		See H090A SWITCH CONTROL PANEL (DASHBOARD)	9
2		NZ		See H005C STEERING COLUMN SWITCH UNIT (DASHBOARD)	9
3		N		See H090A SWITCH CONTROL PANEL (DASHBOARD)	8
4		NZ		See H020 HAZARD WARNING LIGHTS SWITCH	2
5		N		See M001I BODY COMPUTER (DASHBOARD)	9
6		N		See M001I BODY COMPUTER (DASHBOARD)	8
