Earths › C011 right front earth
Connectors and pin-outs C011 right front earth

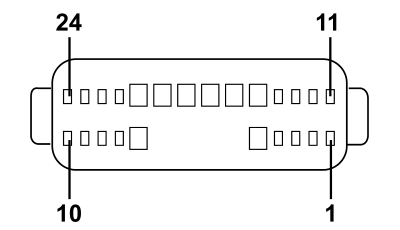

C011 RIGHT FRONT EARTH
1.3 JTD 16v · SUV
1.2 8v · Air Conditioner, ESP, Smart gearbox
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 N See N025 HEADLAMP WASHER PUMP MOTOR 2 2 0,35 NZ See H034 ROBOTIZED GEARBOX AUTO FUNCTION SWITCH 2 3 0,35 NZ See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) 2 4 0,5 N See B001D JUNCTION UNIT (FRONT) 49 5 1,5 N See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT) 1 6 1,5 NZ See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT) 2 7 1 N See F016 RIGHT FOG LAMP 1 8 0,5 N See I031 CLUTCH PEDAL SWITCH 2 9 0,5 N X See D079 TRANSMISSION SENSORS COUPLING 9 11 0,5 N See B001D JUNCTION UNIT (FRONT) 61 12 0,75 NZ See D004 FRONT/ENGINE COUPLING E 13 0,5 NZ See D008 AIR CONDITIONING-HEATER FRONT COUPLING 2 14 1 N See P011 LOW-TONE HORN 2 15 1,5 N See F011 RIGHT HEADLAMP 14 16 1,5 N See F010 LEFT HEADLAMP 14 17 2,5 N See N047 ROBOTIZED GEARBOX ELECTRIC PUMP 1 18 2,5 N See N015 WINDSCREEN WIPER MOTOR 2 19 2,5 N See M001B BODY COMPUTER (FRONT) 2 21 1 N See F015 LEFT FOG LAMP 1 24 1,5 NZ See D079 TRANSMISSION SENSORS COUPLING 1
1.2 8v · Smart gearbox
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 N See N025 HEADLAMP WASHER PUMP MOTOR 2 2 0,35 NZ See H034 ROBOTIZED GEARBOX AUTO FUNCTION SWITCH 2 3 0,35 NZ See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) 2 4 0,5 N See B001D JUNCTION UNIT (FRONT) 49 5 1,5 N See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT) 1 6 1,5 NZ See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT) 2 7 1 N See F016 RIGHT FOG LAMP 1 8 0,5 N See I031 CLUTCH PEDAL SWITCH 2 9 0,5 N X See D079 TRANSMISSION SENSORS COUPLING 9 11 0,5 N See B001D JUNCTION UNIT (FRONT) 61 14 1 N See P011 LOW-TONE HORN 2 15 1,5 N See F011 RIGHT HEADLAMP 14 16 1,5 N See F010 LEFT HEADLAMP 14 17 2,5 N See N047 ROBOTIZED GEARBOX ELECTRIC PUMP 1 18 2,5 N See N015 WINDSCREEN WIPER MOTOR 2 19 2,5 N See M001B BODY COMPUTER (FRONT) 2 21 1 N See F015 LEFT FOG LAMP 1 24 1,5 NZ See D079 TRANSMISSION SENSORS COUPLING 1
1.3 JTD 16v · Air Conditioner
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 N See N025 HEADLAMP WASHER PUMP MOTOR 2 3 0,35 NZ See K025 BRAKE FLUID LEVEL SENSOR (SWITCH) 2 4 0,5 N See B001D JUNCTION UNIT (FRONT) 49 7 1 N See F016 RIGHT FOG LAMP 1 8 0,5 N See I031 CLUTCH PEDAL SWITCH 2 12 0,75 NZ See D004 FRONT/ENGINE COUPLING E 13 0,5 NZ See D008 AIR CONDITIONING-HEATER FRONT COUPLING 2 14 1 N See P011 LOW-TONE HORN 2 15 1,5 N See F011 RIGHT HEADLAMP 14 16 1,5 N See F010 LEFT HEADLAMP 14 18 2,5 N See N015 WINDSCREEN WIPER MOTOR 2 19 2,5 N See M001B BODY COMPUTER (FRONT) 2 20 2,5 N See K081 FUEL TEMPERATURE SENSOR 4 21 1 N See F015 LEFT FOG LAMP 1
1.3 JTD 16v
1.1, 1.2 8v
