SpecificationsVehicle dimensions

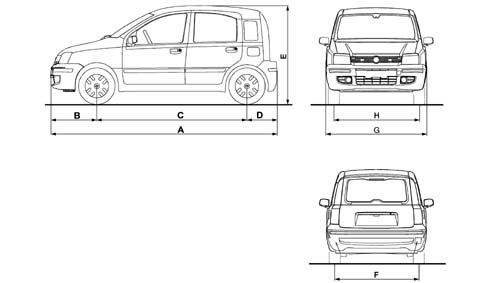

VEHICLE DIMENSIONS
| 1.1 8V | 1.2 8V | 1.2 8V 4x4 | 1.2 8V 4x4 Climbing | 1.3 Multijet | 1.3 Multijet 4X4 SUV | |
|---|---|---|---|---|---|---|
| A (mm) | 3538 | 3538 | 3538 | 3574 | 3538 | 3581 |
| B (mm) | 713 | 713 | 713 | 721 | 713 | 734 |
| C (mm) | 2299 | 2299 | 2305 | 2305 | 2299 | 2305 |
| D (mm) | 526 | 526 | 520 | 548 | 526 | 542 |
| E (mm) | 1578 (**) | 1578 (**) | 1630 (°) | 1632 | 1578 (**) | 1643 (***) |
| F (mm) | 1357 (*) | 1357 (*) | 1358 (*) | 1358 (*) | 1357 (*) | 1382 |
| G (mm) | 1578 | 1578 | 1578 (°°) | 1605 | 1578 | 1611 |
| H (mm) | 1366 (*) | 1366 (*) | 1366 (*) | 1366 (*) | 1366 (*) | 1387 |
(*) Small variations in measurements may arise according to the specification level and rim size
(**) Without longitudinal bars 1540 mm
(***) Without longitudinal bars 1605 mm
(°) Without longitudinal bars 1592 mm
(°°) With side strips 1589 mm
Capacity with vehicle unladen (V.D.A. standards) in dm3
| One-piece and split rear seat | Sliding rear seat | |
|---|---|---|
| Boot closed | 206 200 (°) | 176 (*) 170 (*)(°) 235 (**) 230 (**)(°) |
| Boot waist level with rear backrest folded over | 490 485 (°) | 416 410 (°) |
| Max. at roof with rear backrest lowered | 860 855 (°) | 786 780 (°) |
| Max at roof with rear backrest lowered (with sun-roof) | 815 810 (°) | 741 735 (°) |
(*) With seat fully back
(*) With seat fully forward
(°) 4x4 versions
