A001 battery

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Starting - recharging › A001 battery

Connectors and pin-outsA001 battery

A001 BATTERY

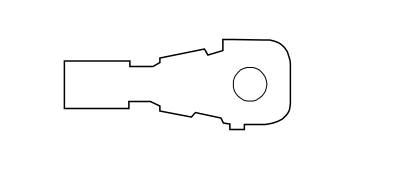

A001A – Battery positive

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See B001A JUNCTION UNIT (BATTERY POSITIVE)

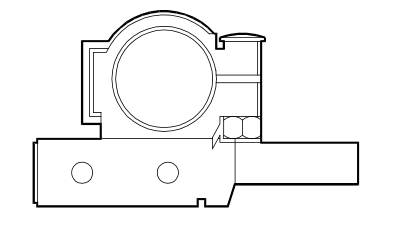

A001B – Battery negative

Wiring	Colour
See 40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	N	X	See C003 BATTERY EARTH ON BODYSHELL
				See C002 BATTERY EARTH ON ENGINE

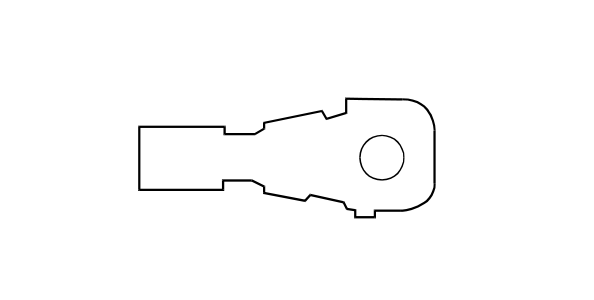

A001C – Front

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See M086A ELECTRIC STEERING CONTROL UNIT (FRONT)	B

1.3 JTD 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See M086A ELECTRIC STEERING CONTROL UNIT (FRONT)	B

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	8	N		See M086A ELECTRIC STEERING CONTROL UNIT (FRONT)	B

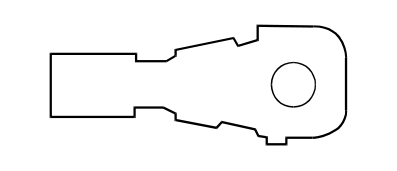

A001D – Engine

1.2 8v · Smart gearbox

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N	X	See M010A ENGINE MANAGEMENT ECU (ENGINE)	5
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	6
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	22
				See M010A ENGINE MANAGEMENT ECU (ENGINE)	21

1.1, 1.2 8v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	4	N		See M010C ENGINE MANAGEMENT ECU (ENGINE)

A001E – Battery positive

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A020B STARTER MOTOR (BATTERY POSITIVE)

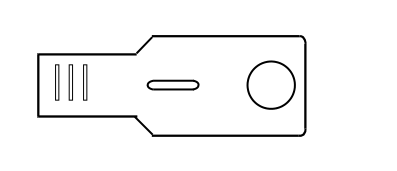

A001F – Front

1.3 JTD 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See K031 WATER IN DIESEL FILTER SENSOR	2
				See M015A PLUG PREHEATING CONTROL UNIT (FRONT)	1
				See M010B ENGINE MANAGEMENT ECU (FRONT)	1
				See M010B ENGINE MANAGEMENT ECU (FRONT)	2
				See M010B ENGINE MANAGEMENT ECU (FRONT)	3
