C012 ABS front earth

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Earths › C012 ABS front earth

Connectors and pin-outsC012 ABS front earth

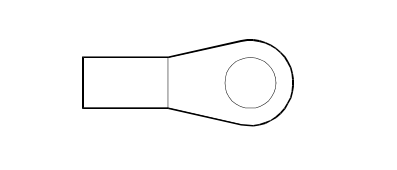

C012 ABS FRONT EARTH

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See M051 Braking system control unit	4
				See M051 Braking system control unit	1

1.3 JTD 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See M050 ABS CONTROL UNIT	4
				See M050 ABS CONTROL UNIT	1

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	6	N	X	See M050 ABS CONTROL UNIT	4
				See M050 ABS CONTROL UNIT	1
