P011 low-tone horn

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Various consumers › P011 low-tone horn

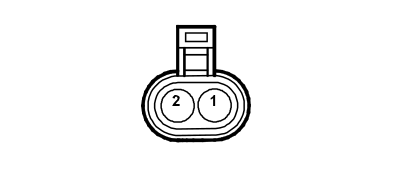

Connectors and pin-outsP011 low-tone horn

P011 LOW-TONE HORN

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	Z		See B001D JUNCTION UNIT (FRONT)	79
2	1	N		See C011 RIGHT FRONT EARTH	14

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	Z		See B001D JUNCTION UNIT (FRONT)	79
2	1	N		See C011 RIGHT FRONT EARTH	14

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	Z		See B001D JUNCTION UNIT (FRONT)	79
2	1	N		See C011 RIGHT FRONT EARTH	14
