Connectors and pin-outs D004 front/engine coupling

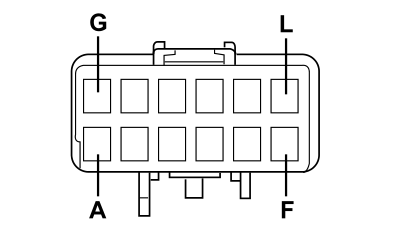

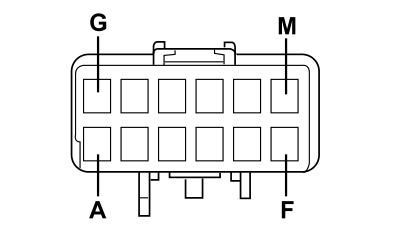

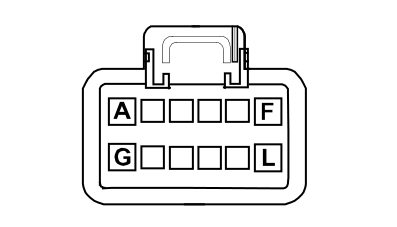

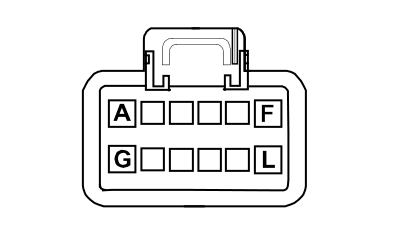

D004 FRONT/ENGINE COUPLING
1.2 8v · Air Conditioner, ESP, Smart gearbox
1.2 8v · Smart gearbox
1.3 JTD 16v · Air Conditioner
1.3 JTD 16v
1.1, 1.2 8v · Air Conditioner
Pin Cable Destination Sec. Colour Node Connect. Pin A 0,75 MR See D097B SHORT CIRCUITING COUPLING (FRONT) 5 B 0,35 GR See M001C BODY COMPUTER (FRONT) 6 D 0,75 MB See B001D JUNCTION UNIT (FRONT) 75 E 0,75 NZ See C011 RIGHT FRONT EARTH 12 F 1,5 AG See B001D JUNCTION UNIT (FRONT) 12 G 1,5 M See H001A IGNITION SWITCH (FRONT) 3 H 0,5 BN See K120 LINEAR SENSOR FOR FANS 1 I 0,5 RN See K120 LINEAR SENSOR FOR FANS 2 J 0,5 HV See M001C BODY COMPUTER (FRONT) 18 K 0,5 NZ See M001C BODY COMPUTER (FRONT) 7 L 0,75 AR See B001D JUNCTION UNIT (FRONT) 14
1.1, 1.2 8v
Pin Cable Destination Sec. Colour Node Connect. Pin A 0,75 MR See D097B SHORT CIRCUITING COUPLING (FRONT) 5 B 0,35 GR See M001C BODY COMPUTER (FRONT) 6 D 0,75 MB See B001D JUNCTION UNIT (FRONT) 75 E 0,75 NZ See C011 RIGHT FRONT EARTH 12 F 1,5 AG See B001D JUNCTION UNIT (FRONT) 12 G 1,5 M See H001A IGNITION SWITCH (FRONT) 3 H 0,75 GR See M010B ENGINE MANAGEMENT ECU (FRONT) 52 I 0,35 V See M010B ENGINE MANAGEMENT ECU (FRONT) 8 J 0,5 HV See M001C BODY COMPUTER (FRONT) 18 K 0,5 NZ See M001C BODY COMPUTER (FRONT) 7 L 0,75 AR See B001D JUNCTION UNIT (FRONT) 14
1.3 JTD 16v
1.2 8v · Air Conditioner, ESP, Smart gearbox
1.2 8v · Smart gearbox
1.1, 1.2 8v · Air Conditioner
Pin Cable Destination Sec. Colour Node Connect. Pin A 0, 75 CN See L010 FUEL VAPOUR RECOVERY SOLENOID VALVE 1 B 0,5 GR See A010A ALTERNATOR (ENGINE) 1 D 0, 75 MV See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET 1 E 0,75 NS See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET 2 F 1,5 MN X See A030B IGNITION COIL (ENGINE) 1 See N070B INJECTOR (ENGINE) 1 See N070A INJECTOR (ENGINE) 1 See N070C INJECTOR (ENGINE) 1 See A030A IGNITION COIL (ENGINE) 1 See N070D INJECTOR (ENGINE) 1 G 1,5 M See A020A STARTER MOTOR (ENGINE) 1 H 0,5 BN X See K043 INTEGRATED AIR TEMPERATURE SENSOR 1 See M010A ENGINE MANAGEMENT ECU (ENGINE) 29 See K036 ENGINE COOLANT TEMPERATURE SENSOR/SENDER UNIT 1 I 0,5 RN X See K043 INTEGRATED AIR TEMPERATURE SENSOR 3 See M010A ENGINE MANAGEMENT ECU (ENGINE) 22 J 0,5 HV See K084 SPEEDOMETER SENSOR 2 K 0,5 Z See K084 SPEEDOMETER SENSOR 1 L 0, 75 MB See K084 SPEEDOMETER SENSOR 3
1.1, 1.2 8v
Pin Cable Destination Sec. Colour Node Connect. Pin A 0,75 CN See L010 FUEL VAPOUR RECOVERY SOLENOID VALVE 1 B 0,5 GR See A010A ALTERNATOR (ENGINE) 1 D 0, 75 MV See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET 1 E 0,75 N5 See L020 AIR CONDITIONING COMPRESSOR ENGAGEMENT ELECTRO-MAGNET 2 F 1,5 MN X See A030B IGNITION COIL (ENGINE) 1 See N070B INJECTOR (ENGINE) 1 See N070A INJECTOR (ENGINE) 1 See N070C INJECTOR (ENGINE) 1 See A030A IGNITION COIL (ENGINE) 1 See N070D INJECTOR (ENGINE) 1 G 1,5 M See A020A STARTER MOTOR (ENGINE) 1 H 0,75 GR See L010 FUEL VAPOUR RECOVERY SOLENOID VALVE 2 I 0,5 W See K028 ENGINE OIL PRESSURE SENSOR 1 J 0,5 HV See K084 SPEEDOMETER SENSOR 2 K 0,5 Z See K084 SPEEDOMETER SENSOR 1 L 0, 75 MB See K084 SPEEDOMETER SENSOR 3
