F012 left main beam

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Exterior lights › F012 left main beam

Connectors and pin-outsF012 left main beam

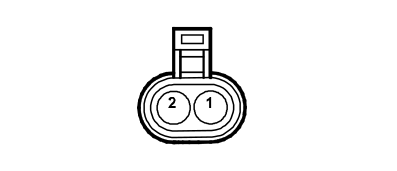

F012 LEFT MAIN BEAM

1.3 JTD 16v · SUV

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	VB		See B001D JUNCTION UNIT (FRONT)	83
2	1	N	X	See F018 LEFT FRONT DIRECTION INDICATOR	2
				See C011 RIGHT FRONT EARTH	21
