I031 clutch pedal switch

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Switches › I031 clutch pedal switch

Connectors and pin-outsI031 clutch pedal switch

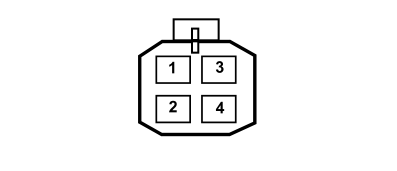

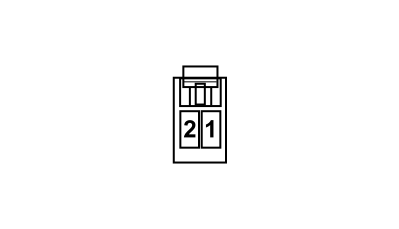

I031 CLUTCH PEDAL SWITCH

1.2 8v

Wiring	Colour
See 12 FRONT

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	CV		See M010B ENGINE MANAGEMENT ECU (FRONT)	50
2	0,5	N		See C011 RIGHT FRONT EARTH	8

1.3 JTD 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HB		See M010B ENGINE MANAGEMENT ECU (FRONT)	93
2	0,5	N		See C011 RIGHT FRONT EARTH	8
