F016 right fog lamp

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Exterior lights › F016 right fog lamp

Connectors and pin-outsF016 right fog lamp

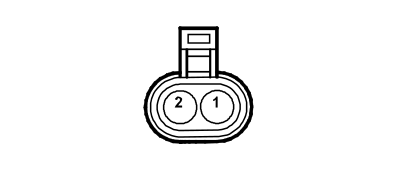

F016 RIGHT FOG LAMP

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See C011 RIGHT FRONT EARTH	7
2	1	S		See B001D JUNCTION UNIT (FRONT)	71

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See C011 RIGHT FRONT EARTH	7
2	1	S		See B001D JUNCTION UNIT (FRONT)	71

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See C011 RIGHT FRONT EARTH	7
2	1	S		See B001D JUNCTION UNIT (FRONT)	71
