F011 right headlamp

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Exterior lights › F011 right headlamp

Connectors and pin-outsF011 right headlamp

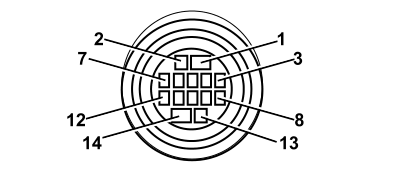

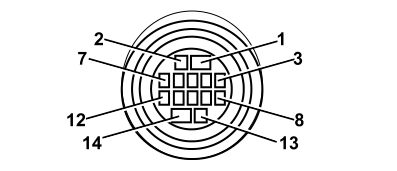

F011 RIGHT HEADLAMP

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	H		See M001B BODY COMPUTER (FRONT)	8
2	1	VB		See B001D JUNCTION UNIT (FRONT)	83
4	0,35	GN		See M001C BODY COMPUTER (FRONT)	14
6	0,5	M		See M001C BODY COMPUTER (FRONT)	10
11	0,5	HG		See M001B BODY COMPUTER (FRONT)	6
13	0,35	GR		See D001 FRONT/DASHBOARD COUPLING	9
14	1,5	N		See C011 RIGHT FRONT EARTH	15

1.3 JTD 16v · SUV

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	H		See M001B BODY COMPUTER (FRONT)	8
2	1	S		See B001D JUNCTION UNIT (FRONT)	71
4	0,5	HB		See M001C BODY COMPUTER (FRONT)	14
11	0,5	HG		See M001B BODY COMPUTER (FRONT)	6
13	0,5	GN		See D001 FRONT/DASHBOARD COUPLING	9
14	0,75	NZ		See C011 RIGHT FRONT EARTH	15

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	H		See M001B BODY COMPUTER (FRONT)	8
2	1	VB		See B001D JUNCTION UNIT (FRONT)	83
4	0,35	GN		See M001C BODY COMPUTER (FRONT)	14
6	0,5	M		See M001C BODY COMPUTER (FRONT)	10
11	0,5	HG		See M001B BODY COMPUTER (FRONT)	6
13	0,35	GR		See D001 FRONT/DASHBOARD COUPLING	9
14	1,5	N		See C011 RIGHT FRONT EARTH	15

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	H		See M001B BODY COMPUTER (FRONT)	8
2	1	VB		See B001D JUNCTION UNIT (FRONT)	83
4	0,35	GN		See M001C BODY COMPUTER (FRONT)	14
6	0,5	M		See M001C BODY COMPUTER (FRONT)	10
11	0,5	HG		See M001B BODY COMPUTER (FRONT)	6
13	0,35	GR		See D001 FRONT/DASHBOARD COUPLING	9
14	1,5	N		See C011 RIGHT FRONT EARTH	15
