D079 transmission sensors coupling

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D079 transmission sensors coupling

Connectors and pin-outsD079 transmission sensors coupling

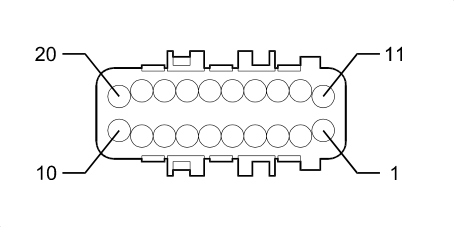

D079 TRANSMISSION SENSORS COUPLING

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	NZ		See C011 RIGHT FRONT EARTH	24
2	0,75	BG		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	29
5	0,35	NV		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	66
6	0,35	MN		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	40
7	0,5	AV		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	52
8	0,5	W		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	59
9	0,5	N		See C011 RIGHT FRONT EARTH	9
10	0,75	BV		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	32
11	0,75	HN		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	43
14	0,35	HR		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	39
15	0,35	SV		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	51
16	0,35	SR		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	73
17	0,5	CB		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	79
18	0,5	B		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	38
19	0,5	H		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	50
20	0,75	AR		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	44

Wiring	Colour
See 52 GEARBOX BRIDGE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		ZN	X	See L051 SOLENOID 1 (GEAR SHIFT)	2
				See L052 SOLENOID 2 (GEAR SHIFT)	2
				See L053 SOLENOID 3 (GEAR SELECTION)	2
				See L056 CLUTCH CONTROL SOLENOID	2
2		MN		See L053 SOLENOID 3 (GEAR SELECTION)	1
5	1,5	B	X	See K096 PRESSURE SENSOR ON TRANSMISSION	A
				See K069 GEAR SHIFT POTENTIOMETER	B
				See K068 SPEED SELECTION POTENTIOMETER	A
6		LR		See K096 PRESSURE SENSOR ON TRANSMISSION	C
7		V		See K095 CLUTCH POSITION POTENTIOMETER	C
8	1,5	B		See K095 CLUTCH POSITION POTENTIOMETER	A
10		BV		See L051 SOLENOID 1 (GEAR SHIFT)	1
11		G		See L056 CLUTCH CONTROL SOLENOID	1
14		MB		See K069 GEAR SHIFT POTENTIOMETER	C
15		BN		See K068 SPEED SELECTION POTENTIOMETER	C
16		R	X	See K096 PRESSURE SENSOR ON TRANSMISSION	B
				See K069 GEAR SHIFT POTENTIOMETER	A
				See K068 SPEED SELECTION POTENTIOMETER	B
17		VN		See K095 CLUTCH POSITION POTENTIOMETER	B
18		CB		See K077 TRANSMISSION OUTPUT SPEED SENSOR	1
19		CN		See K077 TRANSMISSION OUTPUT SPEED SENSOR	2
20		A		See L052 SOLENOID 2 (GEAR SHIFT)	1
