C003 battery earth on bodyshell
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Earths › C003 battery earth on bodyshell
Connectors and pin-outsC003 battery earth on bodyshell

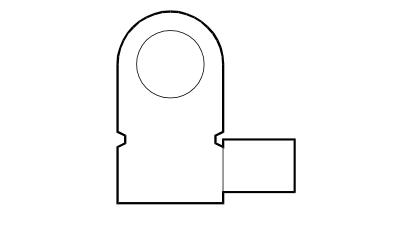

C003 BATTERY EARTH ON BODYSHELL
| Wiring | Colour |
|---|---|
| See 40 BATTERY NEGATIVE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 16 | N | X | See A001B BATTERY (BATTERY NEGATIVE) | ||
| See C002 BATTERY EARTH ON ENGINE | |||||
