F015 left fog lamp
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Exterior lights › F015 left fog lamp
Connectors and pin-outsF015 left fog lamp

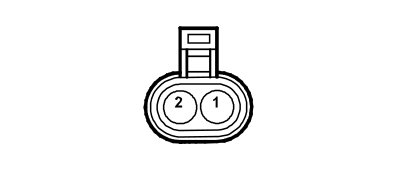

F015 LEFT FOG LAMP
| Wiring | Colour |
|---|---|
| See 12 FRONT | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | N | See C011 RIGHT FRONT EARTH | 21 | |
| 2 | 1 | S | See B001D JUNCTION UNIT (FRONT) | 71 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | N | See C011 RIGHT FRONT EARTH | 21 | |
| 2 | 1 | S | See B001D JUNCTION UNIT (FRONT) | 71 | |
| Wiring | Colour |
|---|---|
| See 12 FRONT | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1 | N | See C011 RIGHT FRONT EARTH | 21 | |
| 2 | 1 | S | See B001D JUNCTION UNIT (FRONT) | 71 | |
