ROBOTIZED GEARBOX - WIRING DIAGRAM

2.0 JTS · Smart gearbox

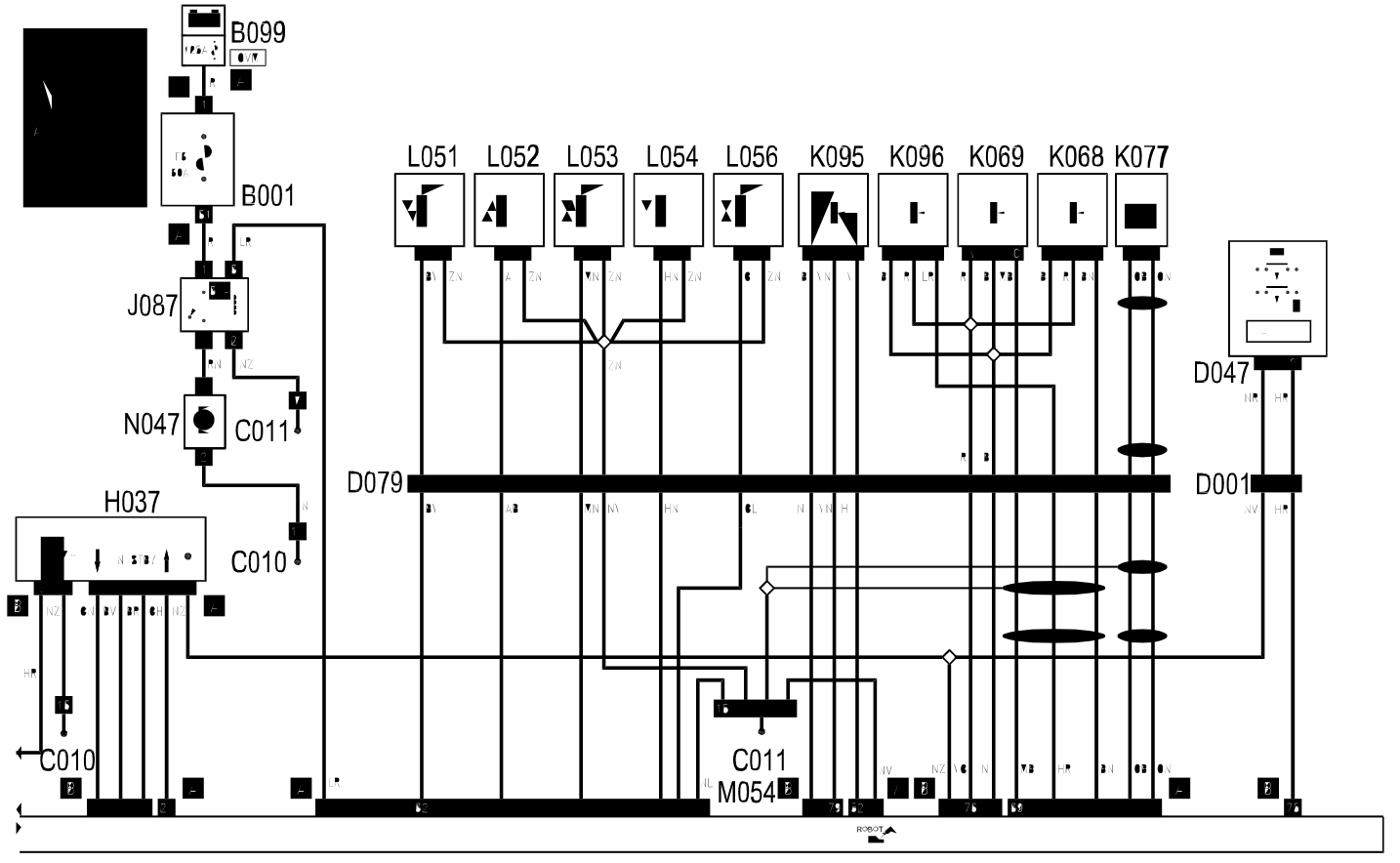

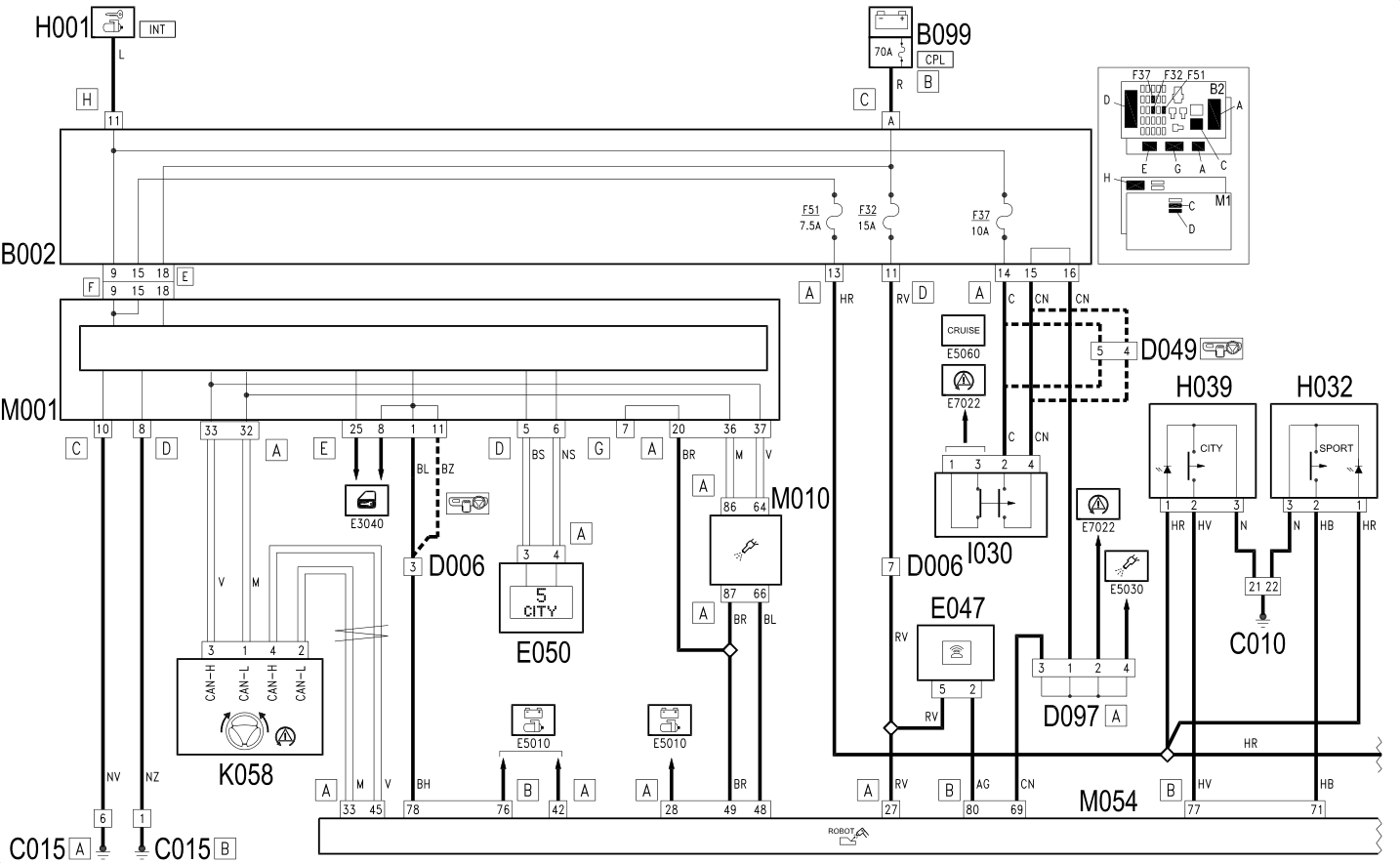

Wiring diagram

Components

Component code	Description	Reference to the assembly
B1	JUNCTION UNIT
B1	JUNCTION UNIT	Op. 1080B EXHAUST EMISSION CONTROL SYSTEM
B1	JUNCTION UNIT	Op. 5505A MULTI-FUNCTION COMPONENTS
B2	JUNCTION UNIT UNDER DASHBOARD	Op. 5505A MULTI-FUNCTION COMPONENTS
B99	MAXIFUSE BOX ON BATTERY	Op. 5530B BATTERY AND LEADS
C10	FRONT LEFT EARTH ( FRONT )
C11	RIGHT FRONT EARTH ( FRONT )
C15	FACIA EARTH, DRIVER''S SIDE
D1	FRONT DASHBOARD COUPLING ( FRONT )
D6	REAR / ENGINE COMPARTMENT JUNCTION
D43	DASHBOARD/CENTRE CONSOLE COUPLING
D47	CLOCK SPRING ON STEERING WHEEL	Op. 5580C AIR BAG SYSTEM
D49	PEDAL ASSEMBLY JOIN
D79	TRANSMISSION SENSOR JUNCTION
D97	SHORT CIRCUITING COUPLING
E47	SELESPEED GEARBOX BUZZER
E50	INSTRUMENT PANEL	Op. 5560B ANALOGUE CONTROL PANEL
H1	IGNITION SWITCH	Op. 5520A IGNITION SWITCH
Interruttore Sport	Sport switch
H37	GEAR CONTROLS	2127A
H39	CITY SWITCH ( CONNECTORS )
I30	BRAKE PEDAL SWITCH ( FRONT )	Op. 5550D BRAKE AND REVERSING LIGHTS
J87	SELESPEED GEARBOX RELAY ( FRONT )
K58	STEERING SENSOR ( FRONT )	Op. 3350E VEHICLE DIRECTION CONTROL SYSTEM VDC
K68	SPEED SELECTION POTENTIOMETER ( CONNECTORS )	2127E
K69	GEAR SHIFT POTENTIOMETER	2127E
K77	TRANSMISSION INPUT SPEED SENSOR ( CONNECTORS )	2127E
K95	CLUTCH POSITION POTENTIOMETER ( CONNECTORS )	2127E
K96	PRESSURE SENSOR ON TRANSMISSION ( CONNECTORS )	2127E
L51	SOLENOID 1 GEAR ENGAGEMENT ( CONNECTORS )	2127C
L52	SOLENOID 2 GEAR ENGAGEMENT ( CONNECTORS )	2127C
L53	SOLENOID 3 GEAR ENGAGEMENT ( CONNECTORS )	2127C
L54	SOLENOID 4 GEAR ENGAGEMENT ( CONNECTORS )	2127C
L56	CLUTCH CONTROL SOLENOID	2127C
M1	BODY COMPUTER	Op. 5505A MULTI-FUNCTION COMPONENTS
M10	ENGINE MANAGEMENT ECU	1056B
M54	SELESPEED TRANSMISSION CONTROL UNIT	2127E
N47	SELESPEED GEARBOX ELECTRIC PUMP ( FRONT )	2127C
