BRAKE LIGHT SWITCH - R+R

Operation 5550D10 · BRAKE AND REVERSING LIGHTS

Removing

• Open the bonnet.
• Disconnect the negative battery terminal.

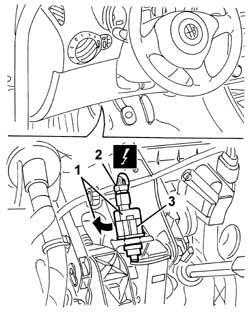

• Working underneath the left side of the dashboard trim, rotate the switch in a clockwise direction by about 90° and move it.
• Disconnect the electrical connection.
• Keep the switch

Refitting

• Keep the brake pedal pressed and fit the switch in the position illustrated.
• Rotate the switch in an anti-clockwise direction through around 90° until it is properly fitted in place.

• Release the brake pedal.

• Connect the electrical connection for the brake pedal.
• Connect the negative battery terminal.
• Close the bonnet.
• Check that the brake lights are working.
