Vehicle dimensions
- Make
- Alfa Romeo
- Model
- GT Factory Service Manual
- Year
- 2003–2010
- Section
- Project description and specifications › Vehicle dimensions
SpecificationsVehicle dimensions

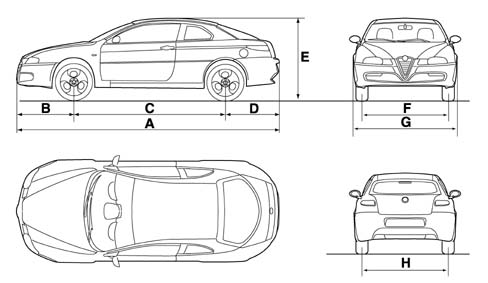

VEHICLE DIMENSIONS
The height refers to an unladen vehicle fitted with standard issue tyres. Minimum variations in measurements with optional tyres fitted.
Luggage compartment capacity (VDA standards): 320 dm3
| 1.8 T.SPARK | 2.0 JTS | 3.2 V6 | 1.9-JTD 16v | |
|---|---|---|---|---|
| A (mm) | 4489 | 4489 | 4489 | 4489 |
| B (mm) | 967 | 967 | 967 | 967 |
| C (mm) | 2596 | 2596 | 2596 | 2596 |
| D (mm) | 926 | 926 | 926 | 926 |
| E (mm) | 1362 | 1362 | 1355 | 1366 |
| F (mm) | 1524 | 1524 | 1524 | 1524 |
| G (mm) | 1763 | 1763 | 1763 | 1763 |
| H (mm) | 1510 | 1510 | 1510 | 1510 |
