D1 Front dashboard coupling

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Intermediate couplings › D1 Front dashboard coupling

Connectors and pin-outsD1 Front dashboard coupling

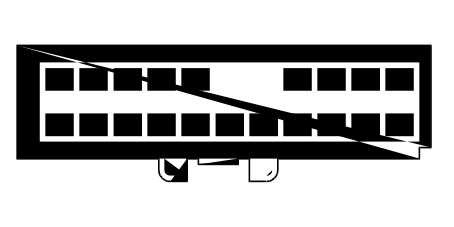

D1 Front dashboard coupling

3.2 V6

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		K29	1
3		GH		B1B	20
4		HV		M54B	77
7		NV	X	M54B	65
				H37	1
8		HR		M54B	75
9		LG		D97C	4
10		CA		M50	8
11		BO		M50	41
12		NZ		D97C	2
13		MZ		M50	9
14		AR		M50	10

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		E50B	17
3		GH		D47	1
7		NR		D47	7
8		HR		D47	8
9		LG		K74	3
10		CA		K74	5
11		BV		K74	4
12		NZ		K74	6
13		MZ		K74	2
14		AR		K74	1

1.8 T.SPARK, 2.0 JTS, 1.9 JTD 16V

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		D4
2		N		D4
3		GH		B1A	21
9		LG		D97C	4
10		CA		M50	8
11		BO		M50	41
12		NZ		D97C	2
13		MZ		M50	9
14		AR		M50	10

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		E50B	17
2		NV		E50B	18
3		GH		D47	1
7		NR		D47	7
8		HR		D47	8
9		LG		K74	3
10		CA		K74	5
11		BV		K74	4
12		NZ		K74	6
13		MZ		K74	2
14		AR		K74	1
