D97 Short circuiting coupling

Make

Alfa Romeo

Model

GT Factory Service Manual

Year

2003–2010

Section

Intermediate couplings › D97 Short circuiting coupling

Connectors and pin-outsD97 Short circuiting coupling

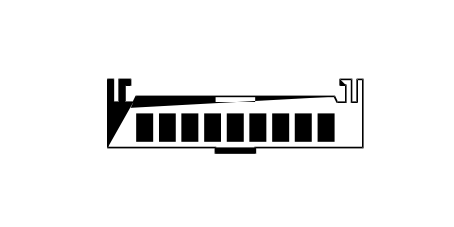

D97 Short circuiting coupling

D97A – Front

1.9 JTD 16V

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		B2A	16
2		CN		M50	32

1.8 T.SPARK, 2.0 JTS

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		B2A	16
2		CN		M50	32
3		CN		M54B	69
4		C		M10A	65
7		CL		M10A	21
8		CL		M50	20
9		CL		I30	3

3.2 V6

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		B2A	16
2		CN		M50	32
3		CN		M54B	69
4		C		M10A	27
7		CL		M10A	26
8		CL		M50	20
9		CL		I30	3

D97C

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		M50	21
2		NZ		D1	12
3		NZ		K58	6
4		LG		D1	9
5		LG		M50	39
6		LG		K58	5
7		LB		B2A	17
8		LB		I30	1
9		LB		H7	2

D97D – Facia

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GV		M1C	18
2		GV		D43	1
3		GV		D75	8
4		LV		P20A	4
5		LV		B2H	3
6		LV		D43	7
7		NZ		P20C	12
8		NZ		D75	10
9		NZ		D47	2

D97E – Rear

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
3	1	RZ		B2D	19
4		RV		D30	20
5		RV		D31	20
6	1,5	R		B2D	12
7		R		D30	21
8		R		D31	21

D97G – Rear

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RV		M1E	33
2		RV		G20	1
3		RV		G31	2
4		RV		G32	2
5		RV		G40	2
6		RN		M1E	39
7	1	RN		K62	3
8		RZ		5
9	1	RN		D20	5

D97H – Rear

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MN		D30	22
2		MN		D31	19
3		MN		B2D	31
4		MN		D6	1
5		MN		D6	2
7	1	A		B2D	4
8	1	AR		D70	1
9	1	AR		D71	1

D97I – Rear

Wiring	Colour
25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	HV		2
2	1,5	HV		2
3	1,5	HV		D31	7
4	1,5	HV		B2D	16
5	1,5	HV		D30	28
6		GV		D31	8
7		GV		B2D	18
8		GV		D30	29

D97M

Xenon Gas headlamps

Wiring	Colour
Connectors

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		S		F10	7
2		S		M1A	35
3		S		F11	7
4		N		F10	10
5		N		K1	1
6		N		D6	12
7		BR		F10	9
8		BR		K1	5
9		BR		D6	14
