Connectors and pin-outsD43 Dashboardcentre console coupling

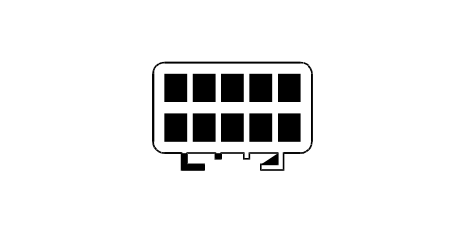

D43 Dashboardcentre console coupling

Wiring	Colour
20 FACIA	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GV		D97D	2
2	1,5	RB		B2H	9
3	1,5	NV		C15A	2
4		MV		B2H	15
5		CB		B2H	16
6		NZ		C15A	7
7		LV		D97D	6
9		AB		M1C	17

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GV		P50	1
2	1,5	RB		P50	2
3	1,5	NV		P50	3
4		NS		H35	7
5		CB		H35	5
6		NZ		H35	3
7		LV		H35	1
9		AB		H35	4
