Alfa Romeo 147 Factory Service Manual (2000-2002)16 · Connectors and pin-outs

16 · General

D97 Short circuiting coupling

Make: Alfa Romeo
Model: 147 Factory Service Manual
Year: 2000–2002
Section: Intermediate junctions › D97 Short circuiting coupling

‹ Prev D79 Selespeed gearbox sensors coupling Next › E47 Selespeed gearbox buzzer

Connectors and pin-outsD97 Short circuiting coupling

D97 Short circuiting coupling

Connector D97A – front harness (black)

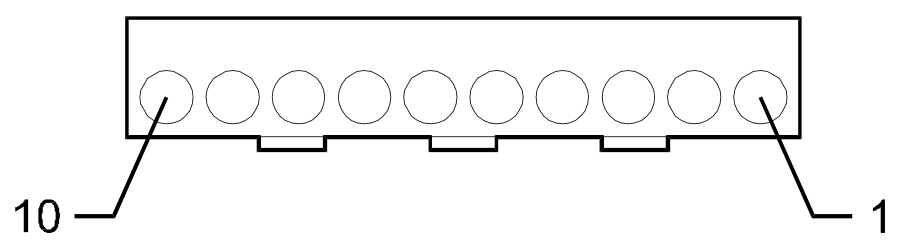

Connector D97A, Short circuiting coupling

Pin	mm²	Colour		To
1		CN	orange/black	B02A pin 16
2		CN	orange/black	M50 pin 32
3		CN	orange/black	M54B pin 69
4		C	orange	M10A pin 27
7		CL	orange/blue	M10A pin 26
8		CL	orange/blue	M50 pin 20
9		CL	orange/blue	I30 pin 3

Connector D97B – front harness (black)

Connector D97B, Short circuiting coupling

Pin	mm²	Colour		To
1		M	brown	M01A pin 32
2		M	brown	D1 pin 15
3		M	brown	M54A pin 33
4		V	green	M01A pin 33
5		V	green	D1 pin 16
6		V	green	M54A pin 45
7		LB	blue/white	B02A pin 17
8		LB	blue/white	I30 pin 1
9		LB	blue/white	H07 pin 2

Connector D97C – dashboard harness (black)

Connector D97C, Short circuiting coupling

Pin	mm²	Colour		To
1		NZ	black/violet	D01 pin 9
2		NZ	black/violet	K74 pin 6
3		NZ	black/violet	K58 pin 1
4		LG	blue/yellow	D01 pin 12
5		LG	blue/yellow	K74 pin 3
6		LG	blue/yellow	K58 pin 2

Connector D97D – dashboard harness (black)

Connector D97D, Short circuiting coupling

Pin	mm²	Colour		To
1		GV	yellow/green	M01C pin 18
2		GV	yellow/green	D43 pin 1
3		GV	yellow/green	D75 pin 8
4		LV	blue/green	P20A pin 4
5		LV	blue/green	B02H pin 3
6		LV	blue/green	D43 pin 7
7		NZ	black/violet	P20C pin 12
8		NZ	black/violet	D75 pin 10
9		NZ	black/violet	D47 pin 2

Connector D97E – rear harness (black)

Connector D97E, Short circuiting coupling

Pin	mm²	Colour		To
1	1.5	AG	light blue/yellow	P31 pin 1
2	1.5	AG	light blue/yellow	P48 pin 1
3	1.5	AG	light blue/yellow	D68B pin 5
4	1.5	AR	light blue/red	P31 pin 2
5	1.5	AR	light blue/red	P48 pin 2
6	1.5	AR	light blue/red	D68B pin 6

Connector D97F – rear harness (black)

Connector D97F, Short circuiting coupling

Pin	mm²	Colour		To
1	1.5	CN	orange/black	P30 pin 1
2	1.5	CN	orange/black	P47 pin 1
3	1.5	CN	orange/black	D68B pin 3
4	1.5	CV	orange/green	P30 pin 2
5	1.5	CV	orange/green	P47 pin 2
6	1.5	CV	orange/green	D68B pin 4

Connector D97G – rear harness (black)

Connector D97G, Short circuiting coupling

Pin	mm²	Colour		To
1		RV	red/green	M01E pin 33
2		RV	red/green	G20 pin 1
3		RV	red/green	G31 pin 2
4		RV	red/green	G32 pin 2
5		RV	red/green	G40 pin 2
6		RN	red/black	M01E pin 39
7	1.0	RN	red/black	K62 pin 3
9	1.0	RN	red/black	D20 pin 5

Connector D97H – rear harness (black)

Connector D97H, Short circuiting coupling

Pin	mm²	Colour		To
1		MN	brown/black	D30 pin 22
2		MN	brown/black	D31 pin 19
3		MN	brown/black	B02D pin 31
4		MN	brown/black	D06 pin 1
5		MN	brown/black	D06 pin 2
7	1.0	A	light blue	B02D pin 4
8	1.0	AR	light blue/red	D70 pin 1
9	1.0	AR	light blue/red	D71 pin 1

Connector D97I – rear harness (black)

Connector D97I, Short circuiting coupling

Pin	mm²	Colour		To
3		HV	grey/green	D31 pin 7
4		HV	grey/green	B02D pin 16
5		HV	grey/green	D30 pin 28
7		NS	black/pink	B02D pin 28
8		NS	black/pink	D30 pin 18

Connector D97J – rear harness (black)

Connector D97J, Short circuiting coupling

Pin	mm²	Colour		To
3	1.5	GV	yellow/green	D31 pin 8
4	1.5	GV	yellow/green	B02D pin 18
5	1.5	GV	yellow/green	D30 pin 29
7		BS	white/pink	B02D pin 10
8		BS	white/pink	D30 pin 17

Connector D97K – front left door harness (black)

Connector D97K, Short circuiting coupling

Pin	mm²	Colour		To
1	1.5	RN	red/black	D30 pin 25
2	1.5	RN	red/black	P45 pin 1
3	1.5	RN	red/black	P35 pin 1
4	1.5	BN	white/black	D30 pin 24
5	1.5	BN	white/black	P45 pin 2
6	1.5	BN	white/black	P35 pin 2

Connector D97L – front right door harness (black)

Connector D97L, Short circuiting coupling

Pin	mm²	Colour		To
1	1.5	NZ	black/violet	D31 pin 24
2	1.5	NZ	black/violet	P46 pin 2
3	1.5	NZ	black/violet	P36 pin 2
4	1.5	SN	pink/black	D31 pin 23
5	1.5	SN	pink/black	P46 pin 1
6	1.5	SN	pink/black	P36 pin 1
7		NV	black/green	P61 pin 7
8		NZ	black/violet	H50 pin 1
9		NZ	black/violet	D31 pin 13

Wiring diagrams
