P20 Car radio

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Users › P20 Car radio

Connectors and pin-outsP20 Car radio

P20 Car radio

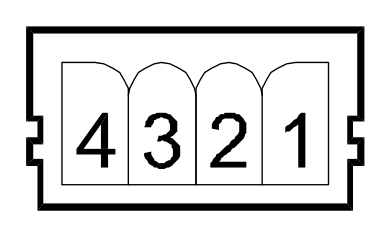

Connector P20A – dashboard harness (white)

Pin	mm²	Colour		To
1		NS	black/pink	B02H pin 5
2		RN	red/black	D20 pin 5
3		BS	white/pink	B02H pin 17
4		LV	blue/green	D97D pin 4
5		H	grey	D20 pin 6
7	1.5	RN	red/black	B02H pin 7
8	1.5	N	black	C15A pin 3

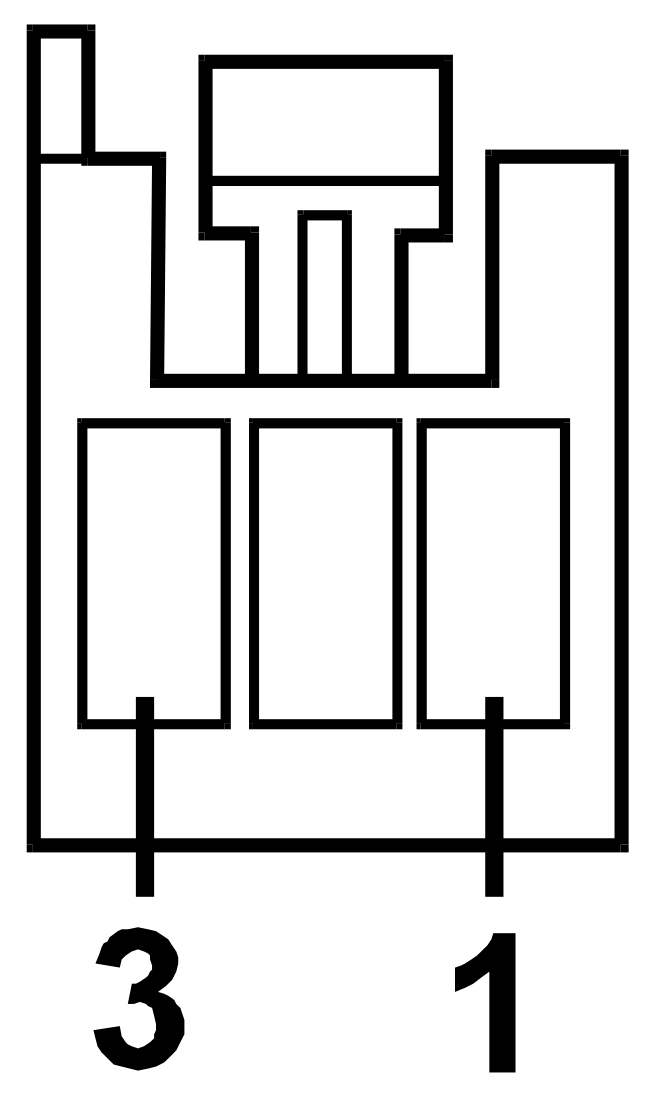

Connector P20B – dashboard harness (black)

Pin	mm²	Colour		To
1	1.5	AG	light blue/yellow	D41 pin 5
2	1.5	AR	light blue/red	D41 pin 6
3	1.5	SN	pink/black	D41 pin 7
4	1.5	NZ	black/violet	D41 pin 8
5	1.5	RN	red/black	D41 pin 1
6	1.5	BN	white/black	D41 pin 2
7	1.5	CN	orange/black	D41 pin 3
8	1.5	CV	orange/green	D41 pin 4

Connector P20B – dashboard harness (black) – System BOSE radio

Pin	mm²	Colour		To
1	1.5	AG	light blue/yellow	D68A pin 5
2	1.5	AR	light blue/red	D68A pin 6
3	1.5	SN	pink/black	D68A pin 7
4	1.5	NZ	black/violet	D68A pin 8
5	1.5	RN	red/black	D68A pin 1
6	1.5	BN	white/black	D68A pin 2
7	1.5	CN	orange/black	D68A pin 3
8	1.5	CV	orange/green	D68A pin 4

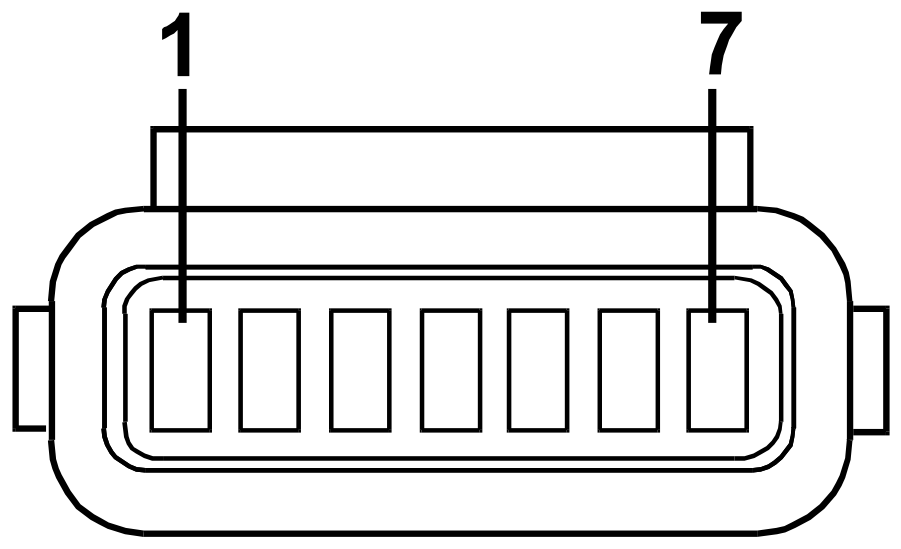

Connector P20C – dashboard harness (light blue - greeen - yellow)

Pin	mm²	Colour		To
7		BL	white/blue	D75 pin 4
8		BN	white/black	D75 pin 3
9		BV	white/green	D75 pin 1
10		SZ	pink/violet	D47 pin 4
11		SV	pink/green	D47 pin 3
12		NZ	black/violet	D97D pin 7

Connector P20C – dashboard harness (light blue - green - yellow) – System BOSE radio

Pin	mm²	Colour		To
6	1.0	H	grey	D68A pin 9
7		BL	white/blue	D75 pin 4
8		BN	white/black	D75 pin 3
9		BV	white/green	D75 pin 1
10		SZ	pink/violet	D47 pin 4
11		SV	pink/green	D47 pin 3
12		NZ	black/violet	D97D pin 7

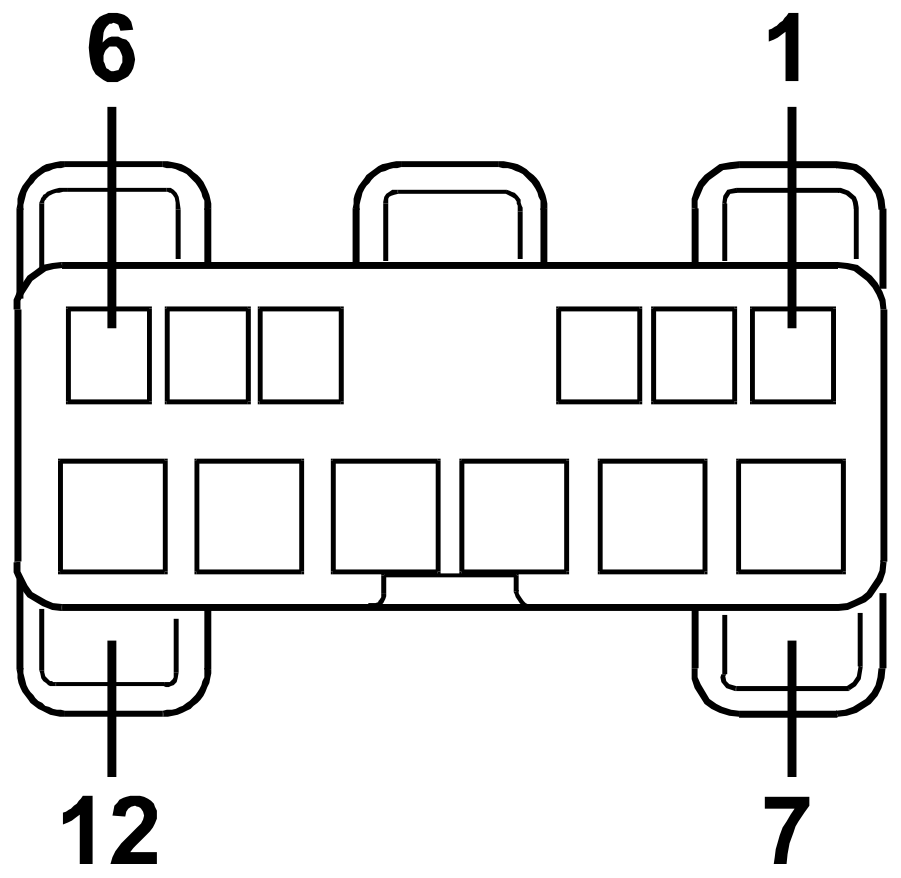

Connector P20D – dashboard harness (black)

Pin	mm²	Colour		To
6	1.0	GR	yellow/red	P27 pin 2
7		B	white	P27 pin 5
8		R	red	P27 pin 4
9		HV	grey/green	D20 pin 8
12		NZ	black/violet	C15A pin 4
16		BL	white/blue	P27 pin 1 P20D pin 17
17		AG	light blue/yellow	P27 pin 1
18		LG	blue/yellow	D20 pin 7

Wiring diagrams

• E1050
• E2530
• E3510
• E3570
• E3580
• E4090
