D47 Clock spring coupling

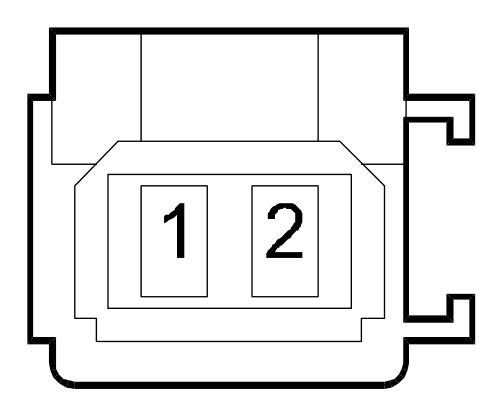

Connector D47 – dashboard harness (black)

Pin	mm²	Colour		To
1		MB	brown/white	M60A pin 14
2		ZB	violet/white	M60A pin 13

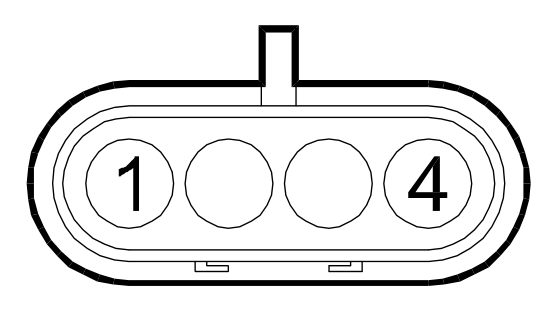

Connector D47 – dashboard harness (black) – Selespeed/Radio controls on steering wheel and speakers

Pin	mm²	Colour		To
2		NZ	black/violet	D97D pin 9
3		SV	pink/green	P20C pin 11
4		SZ	pink/violet	P20C pin 10
5		LN	blue/black	B02H pin 12
7		NR	black/red	D01 pin 7
8		HR	grey/red	D01 pin 8
11		MB	brown/white	M60A pin 14
12		ZB	violet/white	M60A pin 13

Wiring diagrams

• E3510
• E3570
• E7030
• E7051
