Alfa Romeo 147 Factory Service Manual (2000-2002)16 · Connectors and pin-outs

16 · General

P30 Left rear speaker

Make: Alfa Romeo
Model: 147 Factory Service Manual
Year: 2000–2002
Section: Users › P30 Left rear speaker

‹ Prev P27 Telephone receiver Next › P31 Right rear speaker

Connectors and pin-outsP30 Left rear speaker

P30 Left rear speaker

Connector P30 – rear harness (yellow)

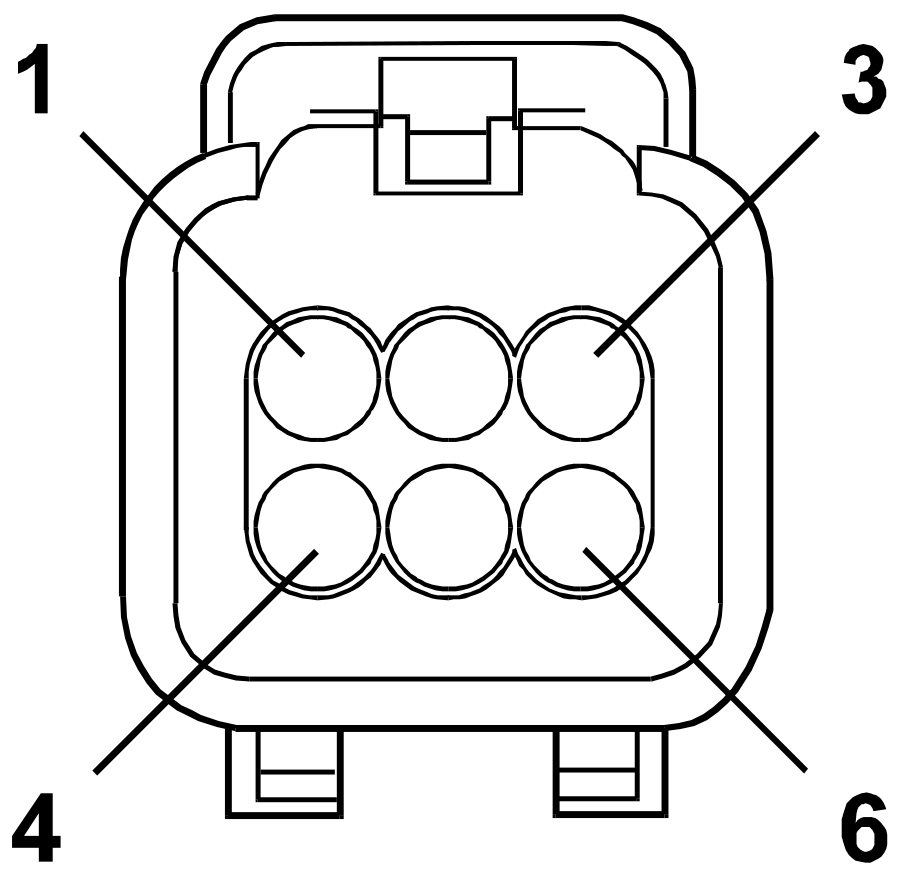

Connector P30, Left rear speaker

Pin	mm²	Colour		To
1	1.5	CN	orange/black	D97F pin 1
2	1.5	CV	orange/green	D97F pin 4

Wiring diagrams

E3510
