D43 Dashboard/centre console coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Intermediate junctions › D43 Dashboard/centre console coupling

Connectors and pin-outsD43 Dashboard/centre console coupling

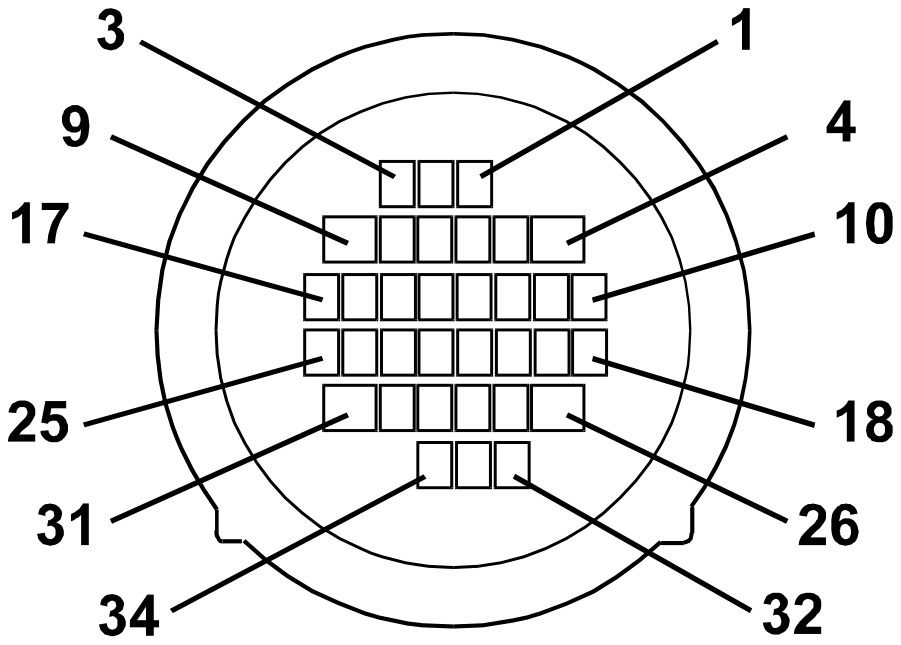

D43 Dashboard/centre console coupling

Connector D43 – dashboard harness (black)

Pin	mm²	Colour		To
1		GV	yellow/green	D97D pin 2
2	1.5	RB	red/white	B02H pin 9
3	1.5	NV	black/green	C15A pin 2
4		MV	brown/green	B02H pin 15
5		CB	orange/white	B02H pin 16
6		NZ	black/violet	C15A pin 7
7		LV	blue/green	D97D pin 6
8		HV	grey/green	D01 pin 4

Connector D43 – centre console bridge harness (black)

Pin	mm²	Colour		To
1		GV	yellow/green	P50 pin 1
2	1.5	RB	red/white	P50 pin 2
3	1.5	NV	black/green	P50 pin 3
4		NS	black/pink	H35 pin 7
5		CB	orange/white	H35 pin 5
6		NZ	black/violet	H35 pin 3
7		LV	blue/green	H35 pin 1
8		HV	grey/green	H35 pin 4

Wiring diagrams

• E2530
• E3070
• E7021
• E7022
• E7051
