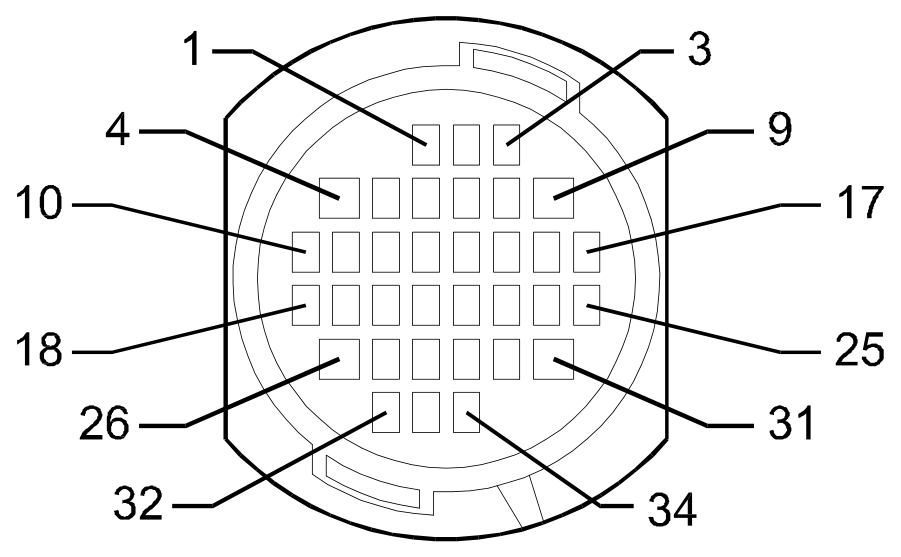

D6 Front / rear coupling

Connector D6 – rear harness (grey)

Pin	mm²	Colour		To
1		MN	brown/black	D97H pin 4
2		MN	brown/black	D97H pin 5
3		BL	white/blue	M01E pin 1
4		SG	pink/yellow	K03 pin 3
5		SZ	pink/violet	K85 pin 3
6		SV	pink/green	K85 pin 1
7	1.5	RV	red/green	B02D pin 11

Connector D6 – front harness (grey)

Pin	mm²	Colour		To
1		MN	brown/black	O50 pin 1
2		MN	brown/black	O51 pin 1
3		BH	white/grey	M54B pin 78
4		SG	pink/yellow	D08B pin 7
5		SZ	pink/violet	H05A pin 2
6		SV	pink/green	H05A pin 4
7	1.5	RV	red/green	M54A pin 27 E47 pin 5

Wiring diagrams

• E3020
• E3030
• E6020
• E7051
