80 - HEATING AND VENTILATIONHEATING AND AIR CONDITIONING SERVOS · page 3 of 3
HEATING AND VENTILATION
5
REPAIR
Refit

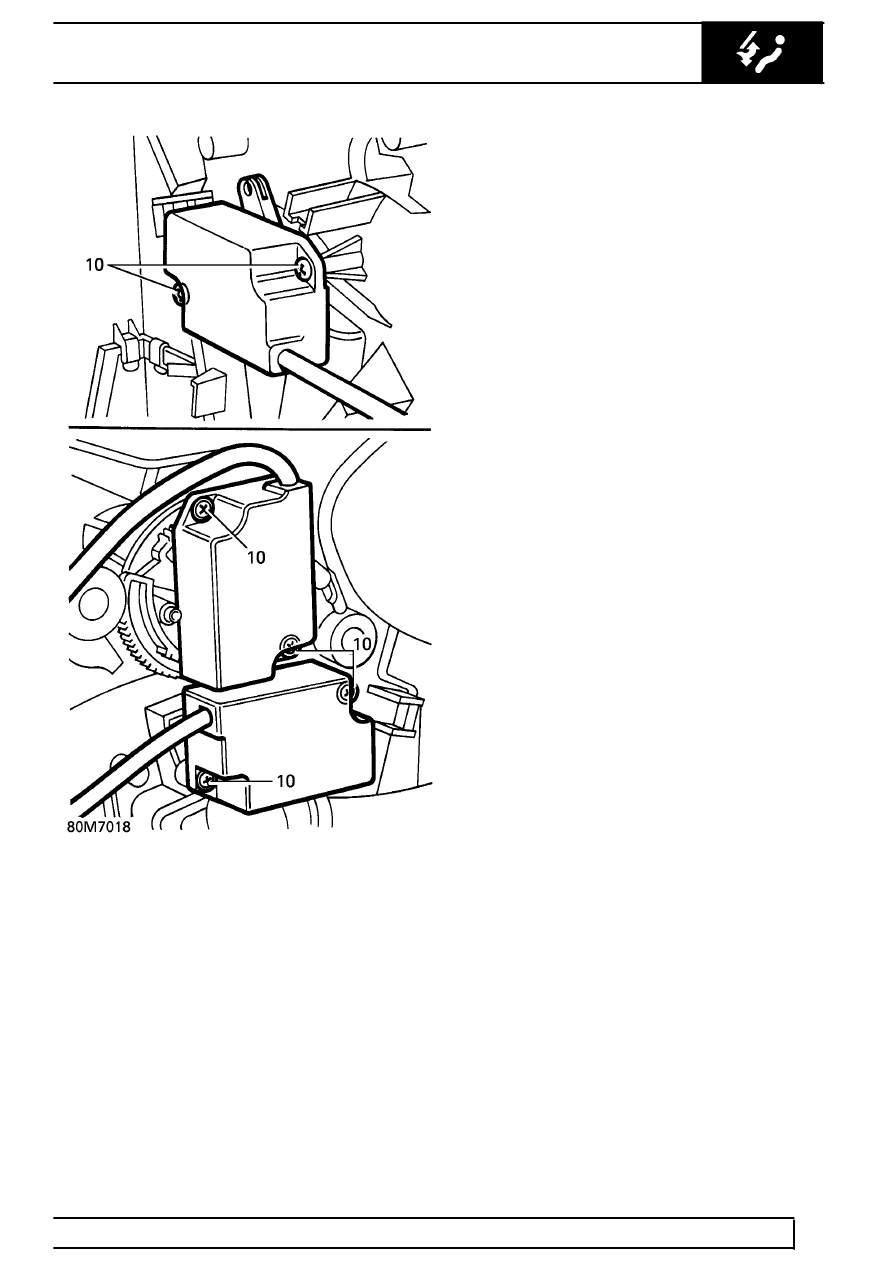

Blend and Distribution Servos.
11. Reverse removal procedure.
Recirculation Flap Servos.
12. Hold flap in ’fresh air’ position.
13. Position servo. Engage drive gear with flap gear.
14. Secure servo with screws. Connect multiplug.
Secure plug to casing.
15. Fit fascia assembly.
See CHASSIS AND
BODY, Repair.
