HEATING AND AIR CONDITIONING SERVOS (page 2 of 3)

Make

Land Rover

Model

Range Rover P38

Section

REPAIR

80 - HEATING AND VENTILATIONHEATING AND AIR CONDITIONING SERVOS · page 2 of 3

80

HEATING AND VENTILATION

NEW RANGE ROVER

4

REPAIR

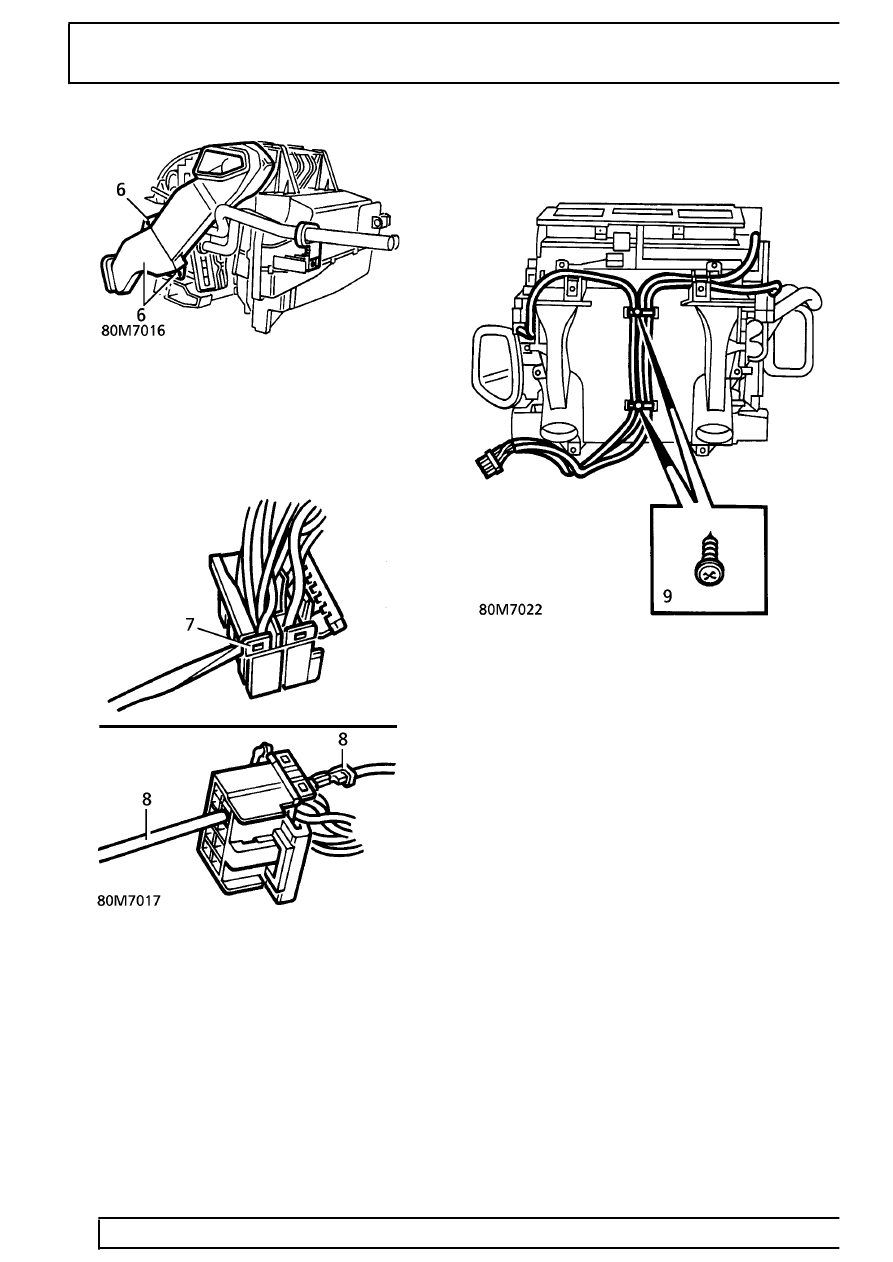

7. Identify relevant pins in servo harness

connector. Release 2 locking tags on rear of
connector.

8. Release relevant pins from connector by

inserting thin probe into front face as shown.

9. Remove 2 harness clamps.

10. Remove 2 screws securing servo to heater

casing. Remove servo.

137 Heating & A/C
