82 - AIR CONDITIONING: DESCRIPTION AND OPERATION
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION
82 - AIR CONDITIONINGDESCRIPTION AND OPERATION · page 1 of 7
AIR CONDITIONING
1
DESCRIPTION AND OPERATION

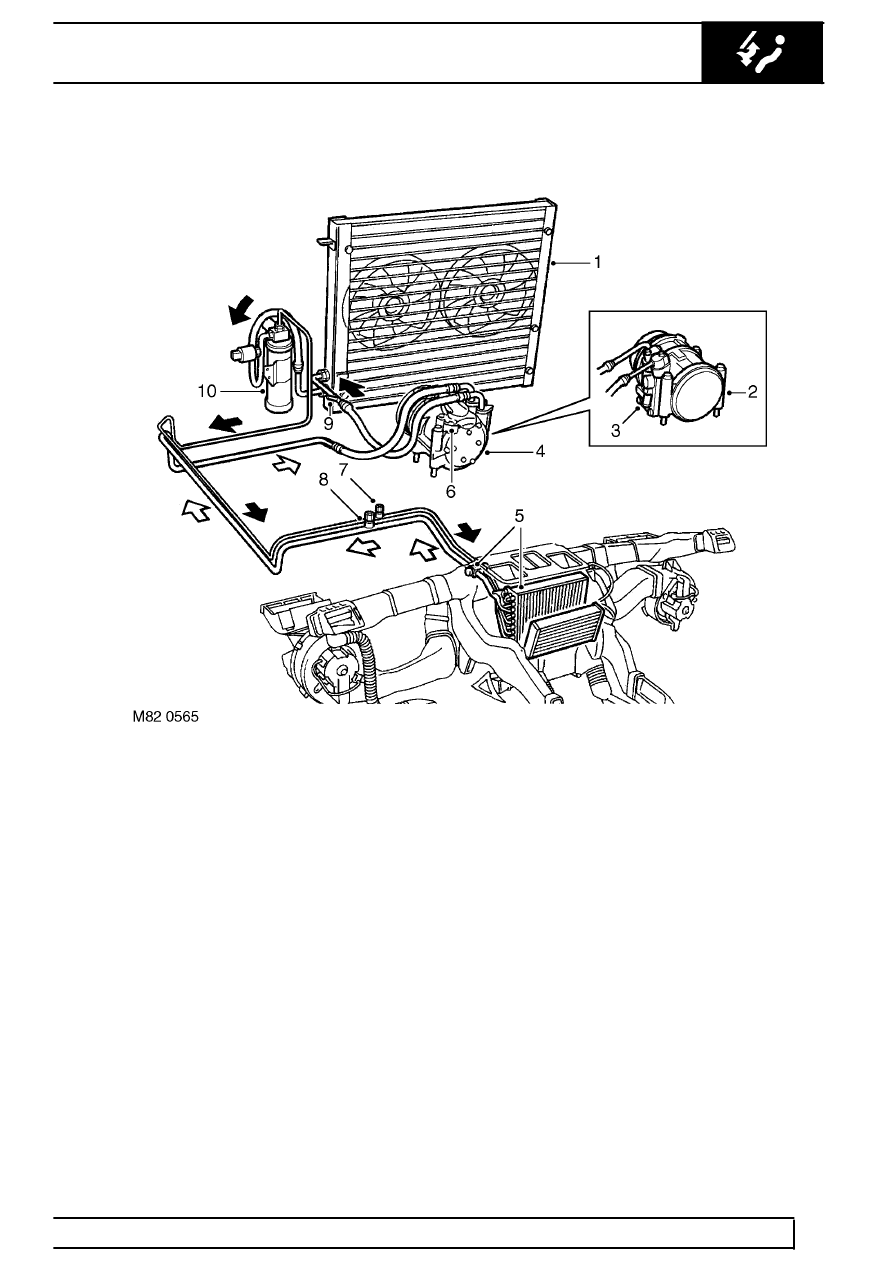

Refrigerant system components - V8 system shown
1. Condenser
2. Compressor (from 99MY)
3. Pressure relief valve
4. Compressor (up to 99MY)
5. Evaporator unit and expansion valve
6. Thermal cutout switch
7. High pressure servicing connection
8. Low pressure servicing connection
9. Pressure relief valve (up to 99MY)
10. Receiver/ Drier
