80 - HEATING AND VENTILATIONDESCRIPTION AND OPERATION · page 1 of 3
HEATING AND VENTILATION
1
DESCRIPTION AND OPERATION

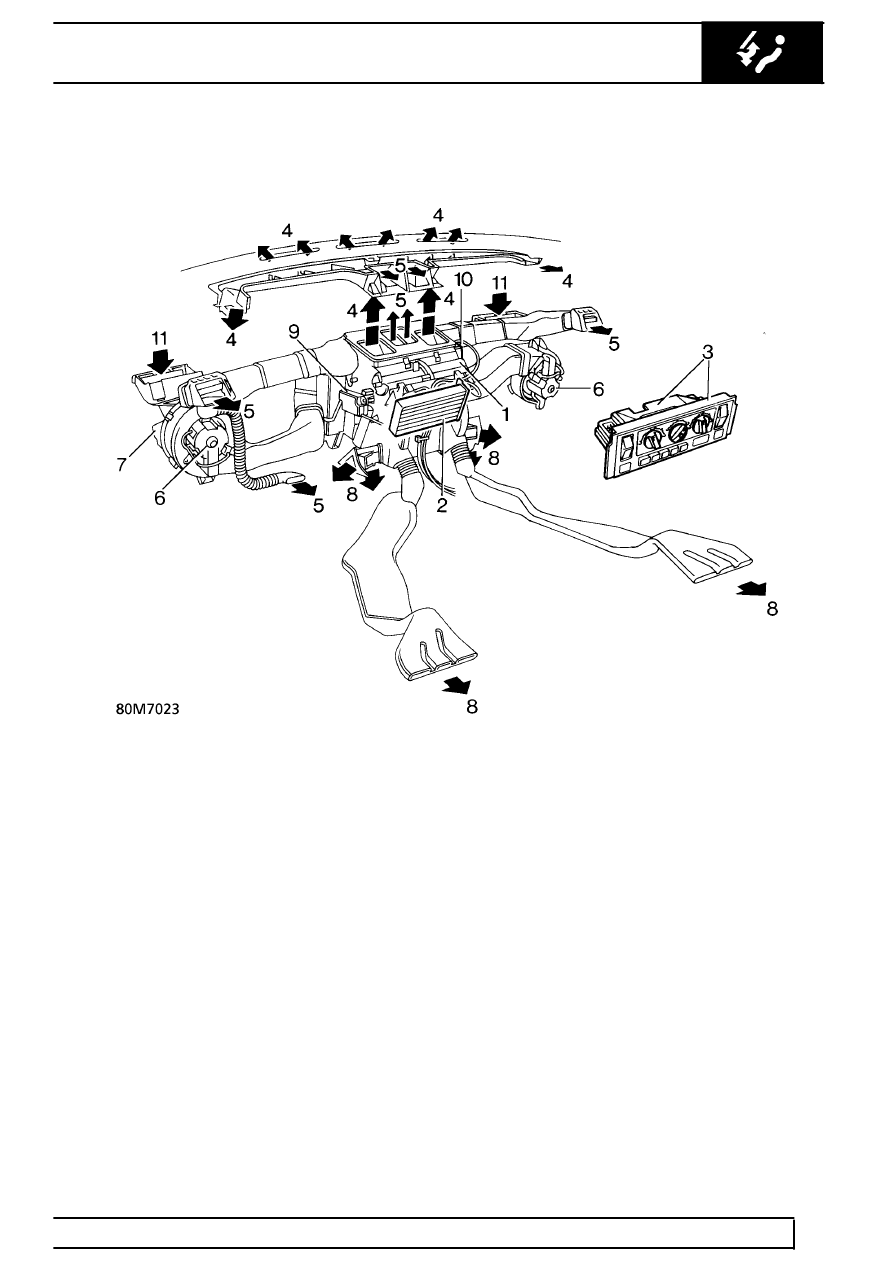

Heating and ventilation components
1. Heater unit
2. Heater matrix
3. Heater ECU
4. Air to windscreen and front side window vents
5. Air to fascia centre vents, side vents and lap
vent (driver only)
6. Blower
7. Fresh/Recirculated air servo
8. Air to front and rear footwells
9. LH temperature servo
10. Distribution servo
11. Fresh air inlet and pollen filter
