Transfer gearbox - V8 (page 2 of 3)

TRANSFER BOX

REPAIRS

41-7

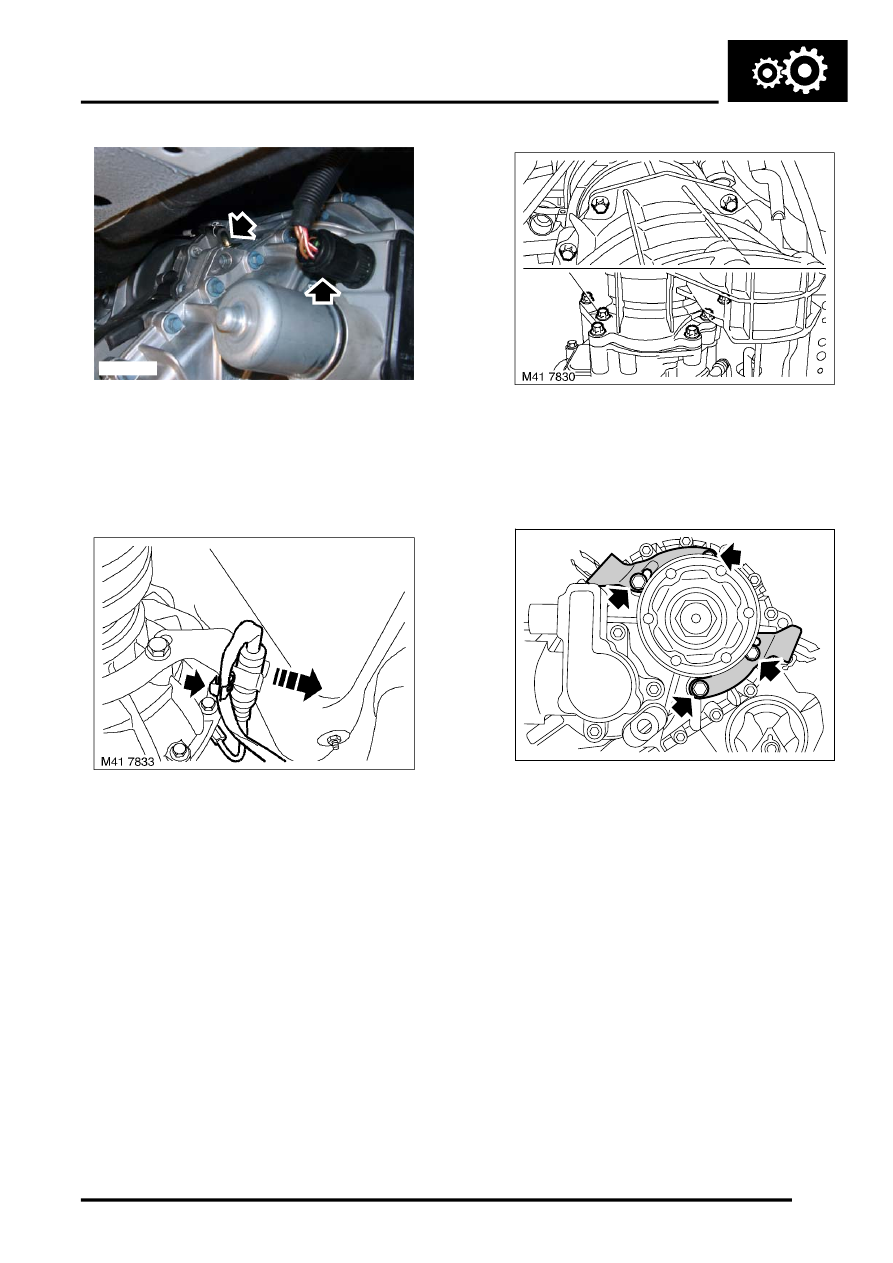

14. Disconnect multiplug from high/low shift motor.
15. Disconnect breather hose from gearbox.

CAUTION: Always fit plugs to open
connections to prevent contamination.

16. Release clips securing oxygen sensor leads to

transfer gearbox.

17. Support transfer gearbox on jack.

18. Remove 9 Torx bolts and remove transfer

gearbox.

NOTE: Do not carry out further dismantling if
component is removed for access only.

19. Remove 4 bolts securing oxygen sensor

multiplug retaining brackets from transfer
gearbox.

M41 7829

M41 7834
